Fitting Fabrication Machine ATLA630 CNC

Fitting Fabrication Machine ATLA630 CNC

Fitting Fabrication Machine ATLA630 CNC
Fitting Fabrication Machine ATLA630 CNCFitting Fabrication Machine ATLA630 CNCFitting Fabrication Machine ATLA630 CNCFitting Fabrication Machine ATLA630 CNCFitting Fabrication Machine ATLA630 CNC
CategoriesFitting Fabrication Machines
BrandWeissenberg
ModelATLA630 CNC
Welding Range in mm315- 630 mm
ElbowsOD 315mm - 630mm ( 0º - 90º )
Wyes ( *Option )OD 315mm - 630mm ( 45º - 60º )
Tees & CrossesOD 315mm - 630mm
CertificateCE, ISO9001
MaterialsHDPE - PP - PPR - PVDF
Update TimeJul 1,2025
Contact Now
Detail Information
Detail Information
Fitting Fabrication Machine ATLA630 Introduction

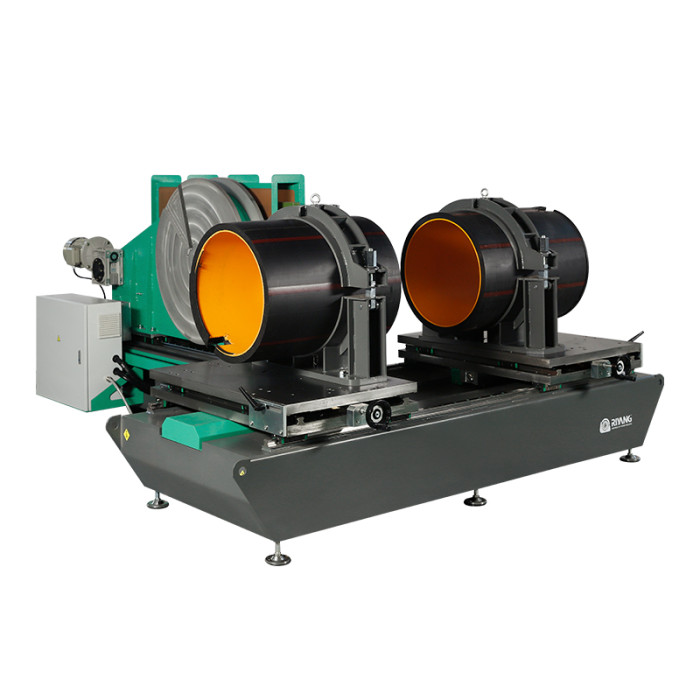

The ATLA630CNC is a versatile fitting fabrication machine designed for producing large-diameter plastic fittings, including elbows, tees, crosses, and wyes up to 630mm. It supports a wide range of thermoplastic materials such as HDPE, PP, and PVDF. With its interchangeable jaws, the machine can easily adapt to different fitting sizes, making it ideal for workshop and industrial applications that require precision and flexibility.

Fitting Fabrication Machine ATLA630 Features

Intelligent Control with Data Tracking

An advanced control panel automates the welding process once parameters like SDR, pipe diameter, and standards are set. The system also records welding data, which can be exported via USB or printed directly for traceability and quality assurance.

Comprehensive Fitting Capability

Comes with a full range of aluminum inserts and steel clamps, enabling the fabrication of elbows, tees, and crosses in various sizes, making it highly adaptable for different fitting production needs.

Hydraulic-Driven Precision System

The machine features a robust frame with two working tables, along with hydraulically powered movement for both the milling cutter and Teflon-coated heating plate, ensuring smooth, precise, and consistent operation.

Fitting Fabrication Machine ATLA630 Technical Parameters

Product model
ATLA630
Welding Range O.D.
315-630mm
Elbows
OD 315mm - 630mm ( 0º - 90º )
Wyes ( *Option )
OD 315mm - 630mm ( 45º - 60º )
Tees & Crosses
OD 315mm - 630mm
Power Supply
34.2KW
Power supply
380VAC, 3 PHASE, 50/60HZ
Packing Material
Plywood Box
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.

File Downloads

For more product related parameter files, please contact us.
