Fitting Fabrication Machine ATLA630 CNC

Working Range in mm	315 - 630 mm
Working Range in Inch	12" IPS - 24" IPS
Fabricated Fitting Type	Bend, Tee, Cross & Wye
Certificate	CE, ISO9001
Materials	HDPE - PP - PPR - PVDF

Contact Now

Detail Information

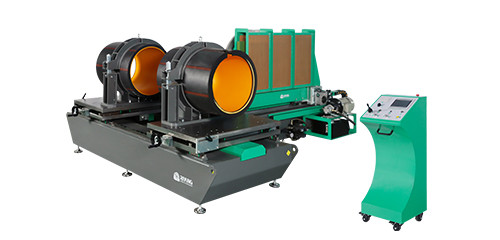

Fitting Fabrication Machine ATLA630 CNC Introduction

The ATLA630 CNC is a flagship CNC-controlled fitting fabrication machine, designed for high-precision and efficient production of medium-diameter thermoplastic fittings. It accommodates pipe sizes from 315mm to 630mm and is ideal for fabricating elbows, tees, crosses, and wyes from materials such as HDPE, PP, and PVDF.

Fitting Fabrication Machine ATLA630 CNC Features

Strong Frame & Quality Components

Built with a powder-coated, corrosion-resistant heavy-duty frame and fitted with globally recognized components such as Siemens, Schneider, Wika, and Dupont. Engineered for long service life and backed by an industry-leading 2-year warranty.

CNC Control with IoT

Simply set the SDR, pipe diameter, and welding standard—the system handles the rest automatically. All welding data is recorded and exportable via USB or printer. IoT integration enables remote diagnostics, real-time support, and software updates for efficient maintenance.

Servo Drive & Low Maintenance

Both heater and trimmer use servo motors for accurate, fast, and quiet movement. A patented insert-in heating element allows you to replace only the damaged part, reducing maintenance costs. The trimmer features a dual-blade design for efficient, clean facing. The enhanced CNC program also supports full welding traceability.

Fitting Fabrication Machine ATLA630 CNC Technical Parameters

Product model	ATLA630 CNC
Welding Range in mm	315-630mm
Welding Range in inch	12" IPS - 24" IPS
Fittings Types Fabricated	0°–90° (Elbow, Tee, Cross), 45°/60° (Wye)

Power supply	380V, 50Hz
Total Power Consumption	34 kW
Control System	Manual or Automatic
Applicable Materials	HDPE, PP, PVDF

* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
