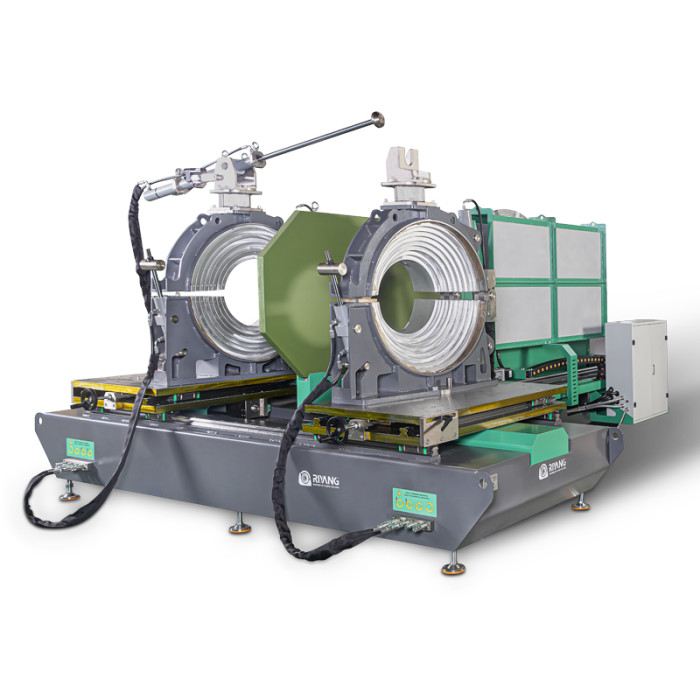

Fitting Fabrication Machine ATLA800 CNC

Share
Categories	Fitting Fabrication Machine
Brand	Weissenberg
Model	ATLA800 CNC
Working Range in mm	400 - 800 mm
Working Range in Inch	16" IPS - 32" IPS
Fabricated Fitting Type	Bend, Tee, Cross & Wye
Certificate	CE, ISO9001
Materials	HDPE - PP - PPR - PVDF
Manufacturer & Logo	Riyang

Contact Now

Detail Information

Fitting Fabrication Machine ATLA800 CNC Introduction

The ATLA800 CNC is a flagship CNC-controlled fitting fabrication machine, designed for high-precision and efficient production of medium-diameter thermoplastic fittings. It accommodates pipe sizes from 400mm to 800mm and is ideal for fabricating elbows, tees, crosses, and wyes from materials such as HDPE, PP, and PVDF.

Fitting Fabrication Machine ATLA800 CNC Features

Smart Control, Reliable Traceability

Pre-programmed welding cycles and a custom welding standard. The welding process is displayed on a 10-inch MCGS touch screen (1024X 600) with a guided workflow that minimizes human intervention and error. For batch production, parameters can be reused to improve efficiency. The system stores up to 10,000 welding records and supports USB export in PDF/CVS/JPG format for full traceability and project compliance.

Power & Efficiency

A machine body with two hydraulically controlled carriages. The movement of the heating plate and facer is driven by servo motors, providing agile response with fast, smooth, and quiet motion.

Remote Diagnostics & Upgrades

The system supports remote troubleshooting and OTA software updates, allowingtechnical teams to identify and resolve issues without the need for on-site service.

Fitting Fabrication Machine ATLA800 CNC Technical Parameters

Product model	ATLA800 CNC
Welding Range in mm	400-800mm
Welding Range in inch	16" IPS - 32" IPS
Fittings Types Fabricated	0°–90° (Elbow, Tee, Cross), 45°/60° (Wye)

Power supply	380V, 50Hz
Total Power Consumption	54.5 kW
Control System	Manual or Automatic
Applicable Materials	HDPE, PP, PVDF

* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
