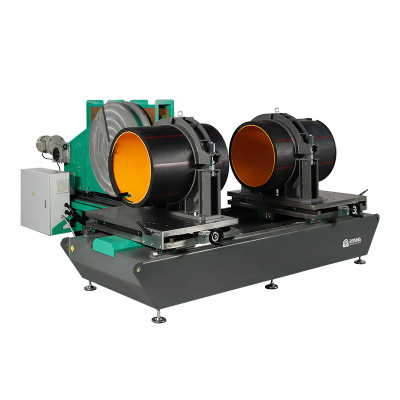

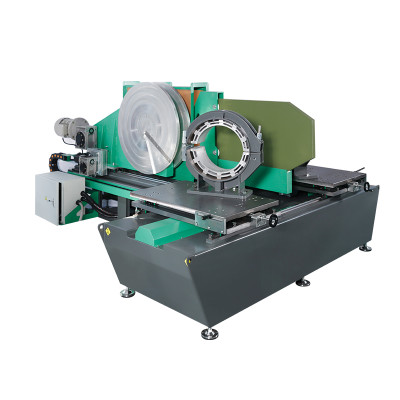

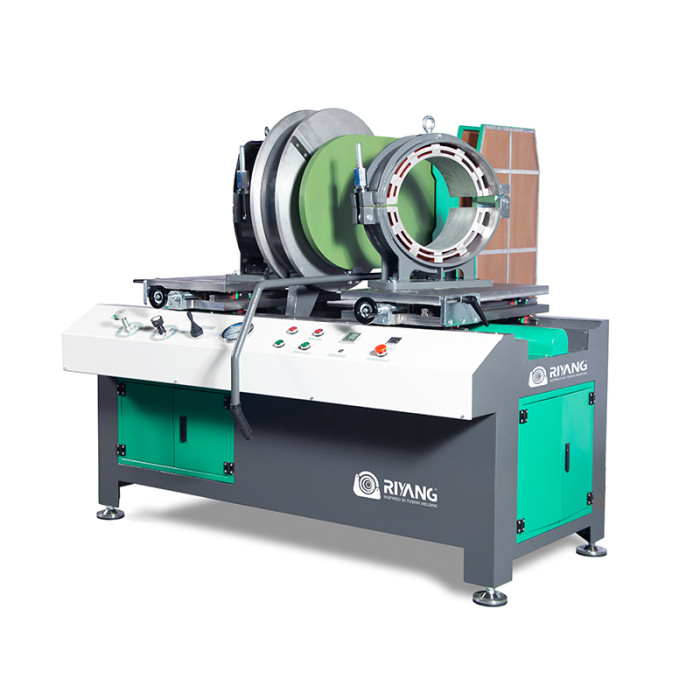

Fitting Fabrication Machine ATLA400

Fitting Fabrication Machine ATLA400
Fitting Fabrication Machine ATLA400Fitting Fabrication Machine ATLA400Fitting Fabrication Machine ATLA400Fitting Fabrication Machine ATLA400
Working Range in mm90- 400 mm
Working Range in Inch4" IPS - 16" IPS
Fabricated Fitting TypeBend, Tee, Cross & Wye
Fusion Welding Standard AppliedISO21307, DVS2207, ASTM F2620 etc.
CertificateCE, ISO9001
MaterialsHDPE - PP - PPR - PVDF
Contact Now
Detail Information
Detail Information
Fitting Fabrication Machine ATLA400 Introduction
The ATLA400 is a versatile fitting fabrication machine designed for producing high-quality plastic fittings, including elbows, tees, crosses up to 400mm, and wyes up to 315mm. Compatible with materials such as HDPE, PP, and PVDF, it utilizes interchangeable jaws to accommodate various sizes, ensuring flexibility and precision in fabrication. Ideal for workshop use, the ATLA400 offers reliable performance for a wide range of piping applications.

Fitting Fabrication Machine ATLA400 Features

Efficient Hydraulic System

Features a dual-carriage structure, both driven by a reliable hydraulic system. The manual control panel is intuitively laid out with all essential functions, offering smooth, flexible operation suited for various fabrication tasks.

Reliable Cutting & Heating

Equipped with an electric trimmer featuring gear transmission and a safety microswitch for precise and secure facing. The PTFE-coated heating plate, protected by a robust steel shield, ensures consistent heat distribution, corrosion resistance, and extended service life.

Versatile Fitting Fabrication

Includes dedicated left and right clamps for elbows, tees, and crosses up to φ315mm, along with a complete set of aluminum inserts from φ90mm to φ280mm. This allows for easy adaptation to different fitting sizes and enhances versatility in workshop applications.

Fitting Fabrication Machine ATLA400 Technical Parameters

Product model
ATLA400
Welding Range in mm
90-400mm
Weldng Range in Inch
4" IPS - 16" IPS
Fabricated Fitting Type
Bend, Tee, Cross & Wye
Power Supply
380VAC, 3 PHASE, 50/60HZ
Fittings Types Fabricated
0°–90° (Elbow, Tee, Cross), 45°/60° (Wye)
Control System
Manual
Total Power Consumption
12.3 kW
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.

File Downloads

For more product related parameter files, please contact us.
