Where Plastic Sheets Meet Unbreakable Joints

Home / All / Riyang Pipe Fusion Machine / Fitting Fabrication Machine / Fitting Fabrication Machine ATLA315 CNC

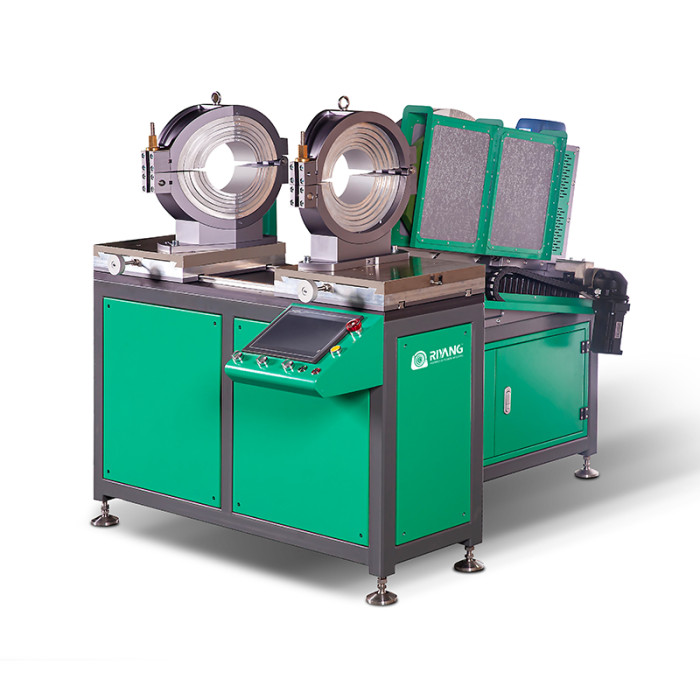

Fitting Fabrication Machine ATLA315 CNC

Fitting Fabrication Machine ATLA315 CNC
Fitting Fabrication Machine ATLA315 CNCFitting Fabrication Machine ATLA315 CNCFitting Fabrication Machine ATLA315 CNCFitting Fabrication Machine ATLA315 CNCFitting Fabrication Machine ATLA315 CNC
Share
Working Range in mm90- 315 mm
Working Range in Inch3" IPS - 12" IPS
Fabricated Fitting TypeBend, Tee, Cross & Wye
Fusion Welding Standard AppliedISO21307, DVS2207, ASTM F2620 etc.
CertificateCE, ISO9001
MaterialsHDPE - PP - PPR - PVDF
Contact Now
Detail Information
Detail Information
Fitting Fabrication Machine ATLA315 CNC Introduction
The ATLA315CNC is a high-performance CNC-controlled HDPE fitting fabrication machine, designed for precise and efficient production of small-diameter thermoplastic fittings ranging from 90mm to 315mm. Ideal for fabricating elbows, tees, crosses, and wyes, this versatile machine works with HDPE, PP, and PVDF materials. With advanced CNC control, the ATLA315CNC ensures high accuracy, consistent quality, and fast production, making it perfect for manufacturers in the HDPE and plastic piping industry who require reliable and efficient fitting fabrication solutions.

Fitting Fabrication Machine ATLA315 CNC Features

High-Precision CNC Control

Its die-cast aluminum main clamps are CNC-machined for high strength and exceptional accuracy, ensuring more precise HDPE fitting fabrication during welding. Servo-driven facers, heaters, and carriages provide fast, stable movement, while encoder feedback and PLC control guarantee consistent positioning and reliable operation.

Smart Control & Traceability

A 10-inch MCGS touch screen with a 1024×600 display provides an intuitive, icon-based interface and guided welding to reduce operator errors. Batch parameters can be reused for higher efficiency. The system stores up to 10,000 welding records and supports USB PDF export, ensuring full traceability and compliance for HDPE fitting fabrication.

Versatile Clamping System

The machine is equipped with dedicated left and right clamps for producing elbows, tees, and crosses up to φ315mm, supported by a complete set of aluminum inserts from φ90mm to φ315mm. This comprehensive setup enables quick adaptation to different fitting sizes, streamlines changeovers, and significantly enhances versatility and efficiency in workshop operations.

Fitting Fabrication Machine ATLA315 CNC Technical Parameters

Product model
ATLA315 CNC
Welding Range in mm
90-315mm
Weldng Range in Inch
3" IPS - 12" IPS
Fabricated Fitting Type
Bend, Tee, Cross & Wye
Power Supply
380VAC, 3 PHASE, 50/60HZ
Fittings Types Fabricated
0°–90° (Elbow, Tee, Cross), 45°/60° (Wye)
Control System
Automatic
Total Power Consumption
10.0 kW
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.

File Downloads

For more product related parameter files, please contact us.
