Pipe Fusion Machine V1000

Categories	Hydraulic Butt Fusion Machines
Brand	Weissenberg
Model	V1000
Welding Range in mm	630-1000mm
Welding Range in inch	24" - 42" IPS
Power Supply	380V±10%, 50/60 HZ
Standard Applied	ISO21307, DVS2207/1, ASTM F2620 etc.
Certificate	CE, ISO9001
Tempreture Range	MAX. 320 ºC
Working Pressure Range	0 - 140 BAR
Update Time	Jul 1,2025

Contact Now

Detail Information

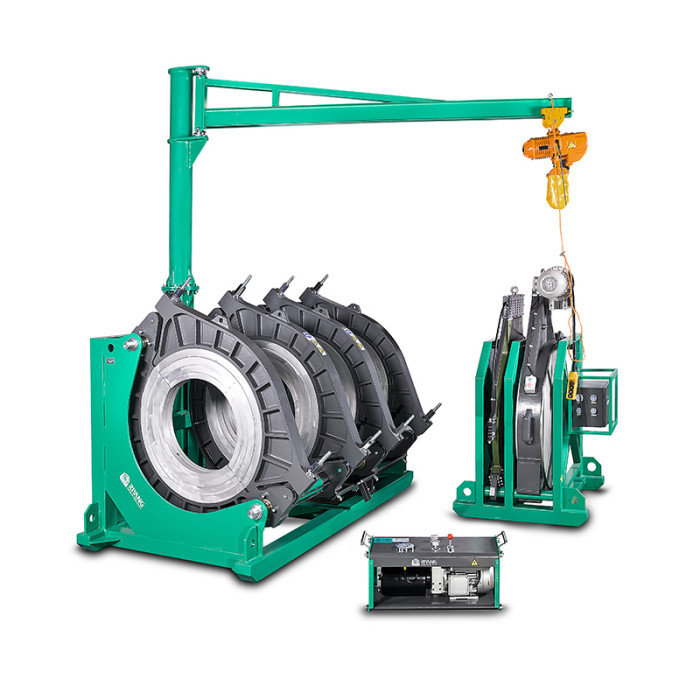

Pipe Fusion Machine V1000 Introduction

The RIYANG V1000 Butt Fusion Welding Machine delivers precise and reliable performance across key applications, including water supply, gas distribution, industrial pipelines, and mining. It ensures strong, leak-free joints for various thermoplastic piping systems, meeting the demands of tough working environments.

Pipe Fusion Machine V1000 Features

Advanced Hydraulic Power Unit

The power station provides strong hydraulic pressure up to 120 bar and uses cartridge valves for simplified maintenance. Its compact, rugged design includes precise temperature control and a quick-release structure for easy servicing and reliable operation.

Reinforced Chassis Design

The sturdy, compact chassis is built to withstand deformation and prevent oil leakage, even when working with thick pipes under harsh conditions. It incorporates premium hydraulic components from leading manufacturers in Germany, Italy, and Japan to ensure exceptional performance.

Heating Plate & Trimmer

The heating plate is coated with durable Teflon, maintaining temperature fluctuations within 7°C, and includes a corrosion-resistant stainless steel junction box. A high-performance electric drill and ergonomic handle ensure efficient and comfortable pipe milling.

Pipe Fusion Machine V1000 Technical Parameters

Product model	V1000
Welding Range O.D.	630-1000mm
Welding Range Inch	24" - 42" IPS
Heater Power	17.5 KW
Trimmer Power	3.0 KW
Pump Power	2.2 KW
Working Pressure Range	0 - 140 BAR

Power supply	380V±10%, 50/60 HZ
Gross Weight	2318 KGS
Packing Material	Plywood Box
Max. HeatingTemperature	320°C

* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
