Pipe Fusion Machine V160

Categories	Hydraulic Butt Fusion Machines
Brand	Weissenberg
Model	V160
Welding Range in mm	50-160mm
Welding Range in inch	2" - 6" IPS
Power Supply	220V±10%, 50/60HZ
Standard Applied	ISO21307, DVS2207/1, ASTM F2620 etc.
Certificate	CE, ISO9001
Tempreture Range	MAX. 280 ºC
Working Pressure Range	0 - 80 BAR
Update Time	Jul 1,2025

Contact Now

Detail Information

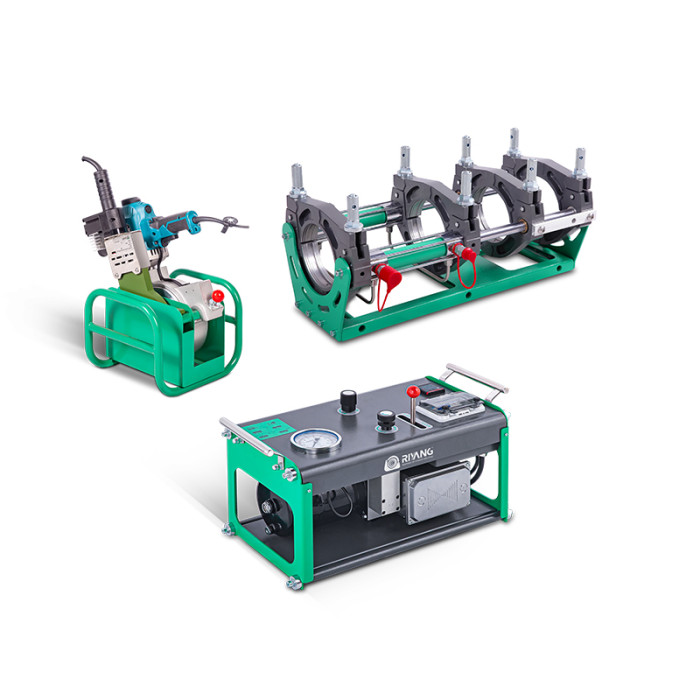

Pipe Fusion Machine V160 Introduction

The RIYANG V160 Butt Fusion Welding Machine offers high-precision, reliable welding for thermoplastic pipes across diverse applications—including water supply, gas distribution, industrial systems, and mining—ensuring strong, leak-free, and long-lasting joints even in the most demanding environments.

Pipe Fusion Machine V160 Features

Durable Heating & Trimming Unit

Teflon coating minimizes adhesion and ensures even heating (<3°C variance). A stainless steel junction box resists corrosion, while a high-power drill provides efficient milling. The ergonomic handle adds comfort during operation.

Compact & Reliable Power Unit

Provides up to 80 bar pressure with cartridge valves for easy maintenance, accurate temperature control, and a robust frame for lasting performance and quick servicing.

Durable Frame with Easy Maintenance

The compact, durable frame resists deformation and oil leaks under heavy loads. Its quick-detach design enables fast servicing, with key hydraulics sourced from top German, Italian, and Japanese brands.

Pipe Fusion Machine V160 Technical Parameters

Product model	V160
Welding Range O.D.	50-160mm
Welding Range Inch	2" - 6" IPS
Heater Power	1.0 KW
Trimmer Power	0.75 KW
Pump Power	1.1 KW
Working Pressure Range	0 - 80 BAR

Power supply	220V±10%, 50/60HZ
Gross Weight	133 KGS
Packing Material	Plywood Box
Max. HeatingTemperature	280°C

* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
