Pipe Fusion Machine V355

Categories	Hydraulic Butt Fusion Machines
Brand	Weissenberg
Model	V355
Welding Range in mm	90-355mm
Welding Range in inch	3" - 14" IPS
Power Supply	220V±10%, 50/60HZ
Standard Applied	ISO21307, DVS2207/1, ASTM F2620 etc.
Certificate	CE, ISO9001
Tempreture Range	MAX. 320 ºC
Working Pressure Range	0 - 80 BAR
Update Time	Jul 1,2025

Contact Now

Detail Information

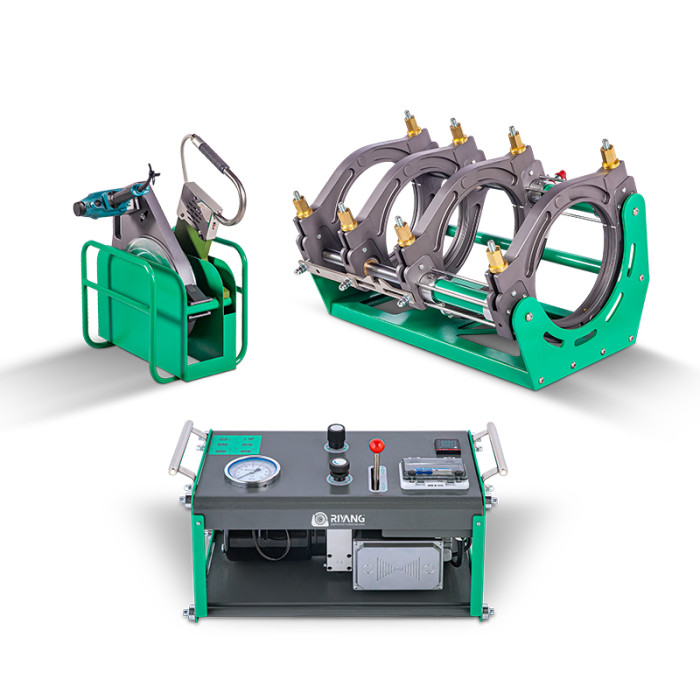

Pipe Fusion Machine V355 Introduction

The RIYANG V355 Butt Fusion Welding Machine is engineered to deliver precise and reliable welding for a wide range of demanding applications. It is ideal for water infrastructure, gas distribution systems, industrial pipelines, and mining operations—ensuring strong, leak-free joints in thermoplastic pipe networks used for water, gas, chemicals, and other critical resources.

Pipe Fusion Machine V355 Features

Durable and Service-Friendly Chassis

The machine chassis features a compact, robust, and quick-detach design for easy maintenance, with high-strength construction to resist deformation and oil leakage under extreme conditions. Key hydraulic components are sourced from top suppliers in Germany, Italy, and Japan.

Efficient Heating Plate & Trimmer

The heating plate features premium Teflon coating with <3°C temperature variation and a corrosion-resistant stainless steel junction box. A powerful drill ensures efficient pipe milling, paired with an ergonomic handle for comfortable use.

Reliable and Precise Power Station

The power station delivers strong hydraulic output up to 80 bar, with cartridge pressure valves for easy maintenance. Its precise temperature control ensures welding accuracy, while the compact, detachable frame resists deformation and allows quick servicing.

Pipe Fusion Machine V355 Technical Parameters

Product model	V355
Welding Range O.D.	90-355mm
Welding Range Inch	3" - 14" IPS
Heater Power	4 KW
Trimmer Power	1.5 KW
Pump Power	1.1 KW
Working Pressure Range	0 - 80 BAR

Power supply	220V±10%, 50/60HZ
Gross Weight	292 KGS
Packing Material	Plywood Box
Max. HeatingTemperature	320°C

* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
