Pipe Fusion Machine V450

Categories	Hydraulic Butt Fusion Machines
Brand	Weissenberg
Model	V450
Welding Range in mm	200-450mm
Welding Range in inch	8" - 18" IPS
Power Supply	380V±10%, 50/60 HZ
Standard Applied	ISO21307, DVS2207/1, ASTM F2620 etc.
Certificate	CE, ISO9001
Tempreture Range	MAX. 320 ºC
Working Pressure Range	0 - 120 BAR
Update Time	Jul 1,2025

Contact Now

Detail Information

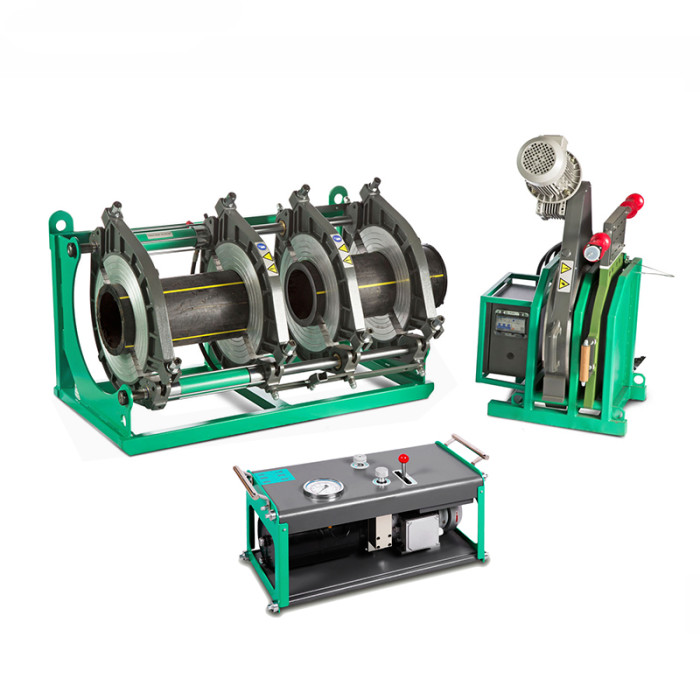

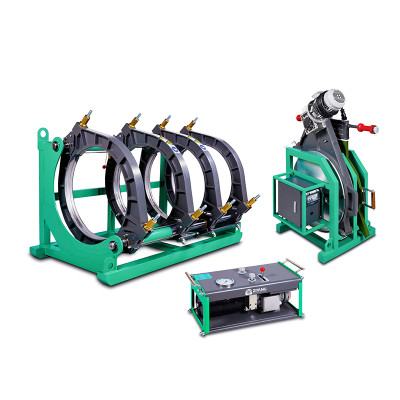

Pipe Fusion Machine V450 Introduction

The RIYANG V450 Butt Fusion Welding Machine delivers precise and reliable fusion welding for thermoplastic pipes, perfectly suited for demanding applications in water supply networks, gas distribution systems, industrial pipelines, and mining operations. It ensures durable, leak-free joints critical for the safe and efficient transport of water, gas, chemicals, and other resources.

Pipe Fusion Machine V450 Features

Efficient Heating & Trimming Unit

The heating plate features premium Teflon coating for minimal plastic adhesion and long service life, with temperature variation kept under 5°C. A corrosion-resistant stainless steel junction box, powerful electric trimmer, and ergonomic handle ensure reliable, safe, and efficient operation.

Durable Machine Chassis

The compact and robust chassis is built to resist deformation and oil leakage under extreme pipe-handling conditions, with core hydraulic components sourced from top suppliers in Germany, Italy, and Japan for reliable performance.

High-Performance Power Station

The power station delivers strong hydraulic output up to 120 bar, with cartridge valves for easy maintenance. Its precise temperature control ensures welding accuracy, while the compact, durable frame and quick-detach design support stability and fast servicing.

Pipe Fusion Machine V450 Technical Parameters

Product model	V450
Welding Range O.D.	200-450mm
Welding Range Inch	8" - 18" IPS
Heater Power	5.38 KW
Trimmer Power	1.5 KW
Pump Power	1.5KW
Working Pressure Range	0 - 120 BAR

Power supply	380V±10%, 50/60 HZ
Gross Weight	493 KGS
Packing Material	Plywood Box
Max. HeatingTemperature	320°C

* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
