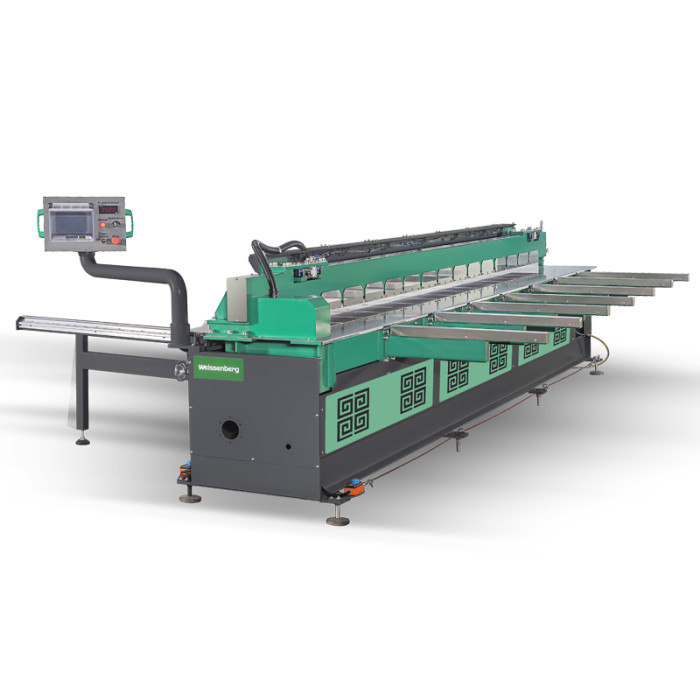

Plastic Sheet Bending Machine RZW5000
| Categories | Plastic Sheet Bending Machine |
|---|---|
| Brand | Weissenberg |
| Model | RZW5000 |
| Maximum Bending Width | 5000 mm |
| Maximum Bending Thickness | 25 mm |
| Bending Angle: | 0-95° |
| Standard Applied | DVS2207 |
| Weldable Materials | PE, PP, PVDF, PVC, ABS etc |
| Certificate | CE |
| Welding Type | Plastic Sheet Bending |
| Update Time | Jul 1,2025 |
Detail Information
Detail Information
Plastic Sheet Bending Machine RZW5000 Introduction
Designed for high-efficiency production, the RZW5000 handles plastic sheets up to 5000mm wide and 3–25mm thick. It supports continuous triple-folding, making it ideal for fabricating four-sided plating tanks and large box structures. With uniform heating, strong clamping force, and reliable motion control, the machine ensures superior forming quality.
Plastic Sheet Bending Machine RZW5000 Features
Plastic Sheet Bending Machine RZW5000 Technical Parameters
| Product model | RZW5000 |
| Maximum Working width | 5,000mm |
Machine Length | 5,700mm |
Machine width | 3,000mm |
Machine height | 1,850mm |
Bending Angle | 0-95° |
Bending Thickness | 3-25mm |
| Power supply | 230/400V 3/N/PE,50/60 Hz |
| Power consumption | 8.5*2KW |
Compressed Air Connection | 4-8bar |
Max. HeatingTemperature | 260°C |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
File Downloads
For more product related parameter files, please contact us.
