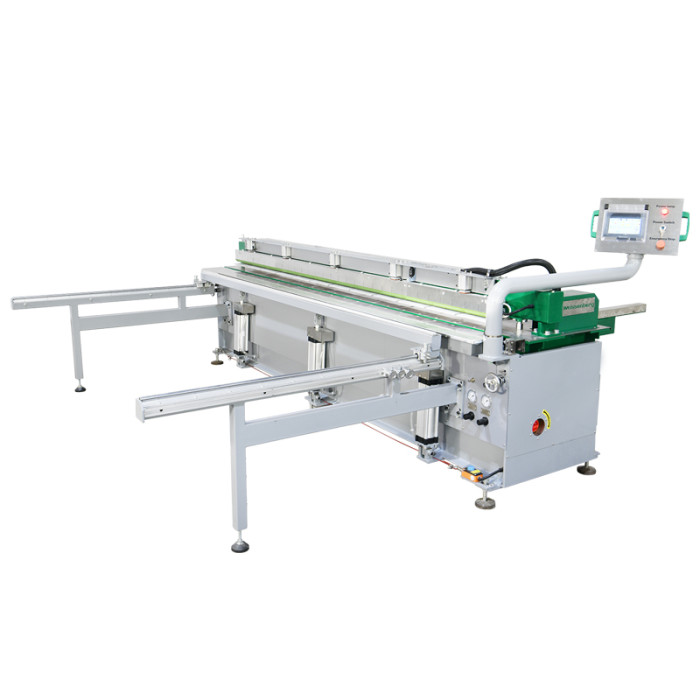

Plastic Sheet Bending Machine WeiFlex 4000

Plastic Sheet Bending Machine WeiFlex 4000

Plastic Sheet Bending Machine WeiFlex 4000
Plastic Sheet Bending Machine WeiFlex 4000Plastic Sheet Bending Machine WeiFlex 4000
CategoriesPlastic Sheet Bending Machine
BrandWeissenberg
ModelWeiFlex 4000
Maximum Bending Width4000 mm
Maximum Bending Thickness25 mm
Bending Angle:0-95°
Standard AppliedDVS2207
Weldable MaterialsPE, PP, PVDF, PVC, ABS etc
CertificateCE
Welding TypePlastic Sheet Bending
Update TimeJul 3,2025
Contact Now
Detail Information
Detail Information
Plastic Sheet Bending Machine WeiFlex 4000 Introduction
Engineered for large-format plastic sheet forming, the WeiFlex 4000 supports up to 4000mm width and 3–25mm thickness. Its reinforced frame and digital temperature control system deliver stable performance and precise results. The adjustable bending angle and user-friendly control panel make it suitable for a wide range of thermoplastic applications.

Plastic Sheet Bending Machine WeiFlex 4000 Features

Continuous Triple Bending

Supports continuous three-fold bending, especially suitable for the efficient production of plating tanks and four-sided grooves.

High-density locking clamps

Deliver secure and even clamping force for precise sheet alignment, while the safety-focused design prevents finger insertion during operation.

Precise Temperature Control

Keeps the heating plate temperature stable within ±5°C, ensuring uniform heat distribution, minimizing material distortion, and enhancing bending precision.

Synchronized Steel Structure

Delivers balanced pressure and coordinated movement during welding, ensuring structural stability and precise joint alignment from start to finish.

Rear-side Bending Output

Allows operators to easily retrieve bent sheets from the rear of the machine, streamlining workflow and ensuring safe handling.

SMC Pneumatic Components

High-quality cylinders, regulators, and valves from SMC ensure stable air pressure and precise control, minimizing downtime and enhancing welding reliability.

Plastic Sheet Bending Machine WeiFlex 4000 Technical Parameters

Product model
WeiFlex 4000
Maximum Working width
4,000mm
Machine Length
4,700mm
Machine width
3,000mm
Machine height
1,850mm
Bending Angle
0-95°
Bending Thickness
3-25mm
Power supply
230/400V
3/N/PE,50/60 Hz
Power consumption
7*2KW
Compressed Air Connection
4-8bar
Max. HeatingTemperature
260°C
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
