Common Plastic Sheet Welding Defects and How to Fix Them (DVS 2207 Professional Guide)
In the fabrication of HDPE, PP, and PVDF sheets—whether for chemical storage tanks, water treatment systems, anti-corrosion equipment, or environmental engineering—weld quality directly determines structural reliability, operational safety, and long-term service life.
Small variations in temperature, pressure, heating time, or sheet preparation can quickly lead to overheating, cold welds, porosity, misalignment, or warpage.
This engineering guide breaks down the most common plastic sheet welding defects, their root causes, and practical solutions aligned with DVS 2207, the industry’s most authoritative thermoplastic welding standard.
1. Overheating (Burning / Yellowing / Brittle Welds)
Symptoms
• Yellowing or discoloration
• Burn marks
• Brittle bead that cracks under stress
Causes
• Heater temperature too high
• Heating time too long
• Temperature fluctuations beyond ±5°C
Solutions
• Maintain stable temperature control (±5°C recommended)
• Reduce heating time, especially on thick sheets
• Clean heater plate to prevent hotspots
2. Insufficient Heating (Cold Weld / False Fusion)
Symptoms
• Low tensile strength
• Peel failure
• Internal layers not fully fused
Causes
• Heating time too short
• Heater plate too narrow for thick material
• Uneven sheet contact with heater
Solutions
• Extend heating time for 20–50 mm sheets
• Use heater plates ≥ 85 mm for thick-wall welding
• Ensure full heater contact before pressurizing
3. Misalignment (Offset / Step Formation)
Symptoms
• A visible “step” along the weld
• Sheet shifting during heating
• Uneven joint geometry
Causes
• Insufficient clamping force
• Unstable or inconsistent cylinder pressure
• Poor sheet support during vertical welding
Solutions
• Use precision SMC cylinders for stable pressure
• Improve clamping force on long or heavy sheets
• Add vacuum suction for larger panels
• For vertical seams, use dedicated 90° vertical butt welding systems
4. Porosity / Bubbles
Symptoms
• Small white pinholes
• Bubbles visible in cross-sections
• Micro-leakage under pressure tests
Causes
• Moisture inside sheet material
• Uneven surface heating
• Dust contamination at the melt zone
Solutions
• Pre-dry sheets if necessary
• Use multi-zone heater plates for uniform heat
• Clean material surfaces thoroughly
5. Incomplete Fusion
Symptoms
• Delamination during bend testing
• Extrusion reinforcement peeling
• Weak bonding in the core
Causes
• Insufficient welding pressure
• Low temperature during heating
• Poor extrusion welding control
Solutions
• Follow DVS 2207-based pressure parameters
• Ensure stable ±5°C temperature control
• Use stable extrusion welders for reinforcement
6. Contamination
Symptoms
• Black spots
• Embedded foreign particles
• Rough or inconsistent weld bead
Causes
• Oxidized material edges not trimmed
• Dirty heater plate
• Dust and debris from workshop environment
Solutions
• Shave off oxidized edges before welding
• Clean heater plate frequently
• Improve workshop cleanliness and airflow
7. Vertical Weld Sagging
Symptoms
• Melt layer sags downward
• Inconsistent inner/outer corner seams
• Deformation at the weld zone
Causes
• Gravity affecting molten material
• Insufficient vertical clamping
• Overheating during vertical welds
Solutions
• Use 90° vertical butt welding capability
• Stabilize sheets using vacuum suction
• Shorten heating time for vertical joints

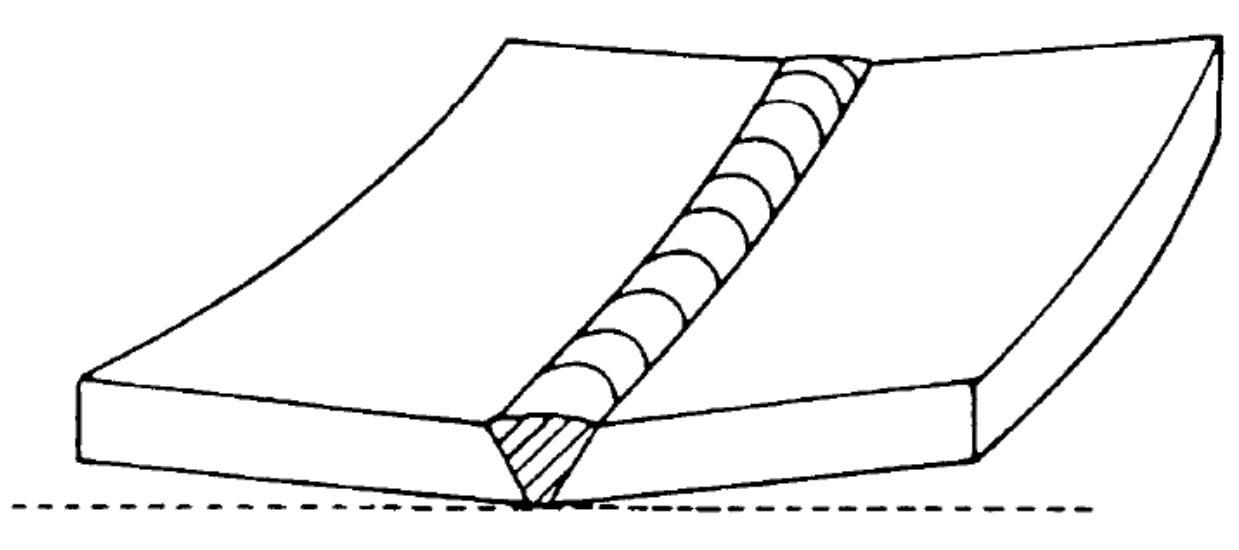

8. Cooling Deformation (Warpage)
Symptoms
• Panel twisting after cooling
• Curling edges
• Uneven stress distribution
Causes
• Cooling too fast
• Pressure variation during cooling
• Strong airflow in the welding area
Solutions
• Extend cooling time
• Maintain stable pressure
• Avoid welding near high airflow environments
⭐ Welding Defect Comparison Table (Defect → Cause → Fix)
Defect | Symptoms | Causes | DVS-Based Solutions |
Overheating | Yellowing, burning | Excess temperature | Maintain ±5°C; clean heater; reduce heating |
Cold Weld | Weak bonding | Heating too short | Extend heating; use ≥85 mm heater |
| Misalignment | Step / offset | Weak clamping | SMC cylinders; stronger clamps; vacuum |
Porosity | Bubbles | Moisture; uneven heating | Pre-dry; multi-zone heating; clean surfaces |
Incomplete Fusion | Delamination | Low pressure | Adjust pressure; stable temp; proper extrusion |
| Contamination | Black spots | Oxidized edges; dirty heater | Trim edges; clean heater |
| Vertical Sagging | Melt dripping | Gravity; low support | 90° vertical welding; vacuum support |
| Warpage | Distortion | Fast cooling; pressure fluctuation | Extend cooling; stabilize pressure |
9. How DVS 2207 Helps Prevent Defects
DVS 2207 standardizes:
• Welding temperature
• Heating duration
• Pressure parameters
• Cooling time
• Sheet thickness compatibility
• Seam geometry requirements
To dive deeper into the principles of plastic sheet butt welding and DVS parameters, you can explore our Ultimate Guide to Plastic Sheet Butt Welding Machines
10. Butt Welding vs. Extrusion Welding
| Application | Recommended Process | Why |
| Long straight seams | Butt welding | Highest strength & uniformity |
Thick sheet assembly | Butt welding | Best fusion depth |
Bottom-to-side joints | Butt + extrusion | Structural reinforcement |
Inner/outer corners | Extrusion welding | 3D adaptability |
| Vertical sheets | 90° vertical butt welding | Prevents sagging |
| Repairs | Extrusion | Precise & local |
11. How Equipment Quality Reduces Welding Defects
Key Features for Butt Welding Machines
• 85 mm wide heater plate
• ±5°C temperature stability
• SMC pneumatic cylinders
• Mitsubishi PLC system
• 3–6 m long-bed options
• 90° vertical butt welding capability
• Extrusion Welders
• Stable output
• Controlled melt temperature
• Suitable for complex geometries
12. Technical Support & Downloads
If you need welding parameters, technical documents, or setup instructions, you can always check our Downloads & Support
Moving Toward More Stable and Predictable Weld Quality
Welding challenges never fully disappear, especially when you're dealing with thick HDPE panels, vertical seams, or chemical-grade assemblies. But across the many workshops and engineering teams we've supported, the biggest improvements almost always come from controlling the fundamentals — temperature, pressure, and heating time.
If you're troubleshooting a specific weld issue or aiming for more repeatable, DVS-level weld consistency, our team is always open to technical discussions and real-world problem-solving.
