Pipe Band Saw TPS400
| Cutting Range in mm | 90 - 400 mm |
|---|---|
| Rated Power | 2.5KW |
| Line Speed | 0 - 255 m/min |
| Space Occupation | 180 cm * 200 cm |
| Certificate | CE, ISO9001 |
| Materials | HDPE - PP - PPR - PVDF - PVC |
Detail Information
Detail Information

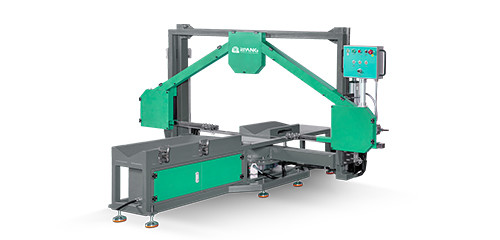

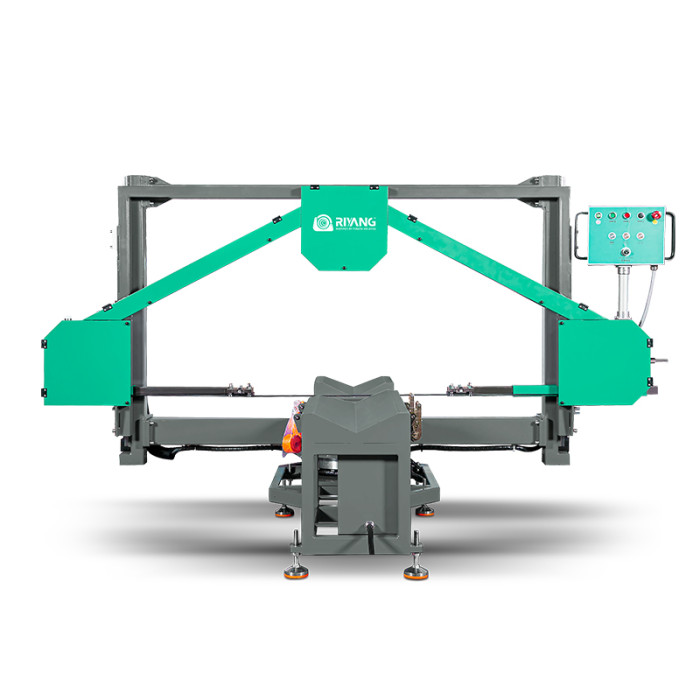

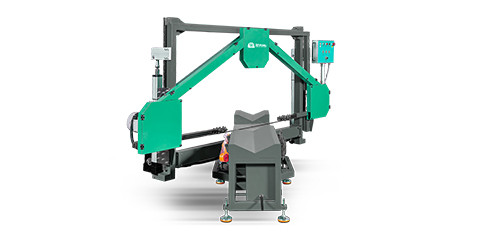

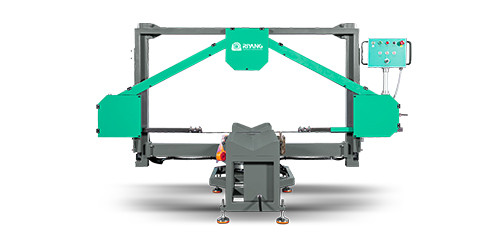

Pipe Band Saw TPS400 Introduction
The TPS400 is an electric workshop band saw for cutting HDPE, PP, PVDF, PPR, and PVC pipes from 90mm to 400mm in diameter. Featuring precise angle adjustment from -45° to 67.5° and a body mounted on slewing bearings for easy manual movement, it pairs perfectly with the ATLA400 fitting machine. A mobile control panel allows operators to safely manage saw movement and cutting speed, while heavy-duty tie-down straps ensure secure manual pipe clamping during cutting.
Pipe Band Saw TPS400 Features
Pipe Band Saw TPS400 Technical Parameters
| Product model | TPS400 |
| Cutting Range O.D. | 90-400 mm |
Rated Power | 2.5 kW |
Line Speed | 0 - 255 m/min |
Space Occupation | 180 cm * 200 cm |
MAX. Cutting Angle | 67.5º |
| Power supply | 380 V, 3 P, 50/60 hz |
Packing Material | Plywood Pallet |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
