Pipe Band Saw TPS630
| Categories | Pipe Band Saws |
|---|---|
| Brand | Weissenberg |
| Model | TPS630 |
| Cutting Range in mm | 200- 630 mm |
| Rated Power | 3.7KW |
| Line Speed | 0 - 255M/MIN |
| Space Occupation | 560CM * 560CM |
| Certificate | CE, ISO9001 |
| Materials | HDPE - PP - PPR - PVDF - PVC |
| Update Time | Jul 1,2025 |
Detail Information
Detail Information

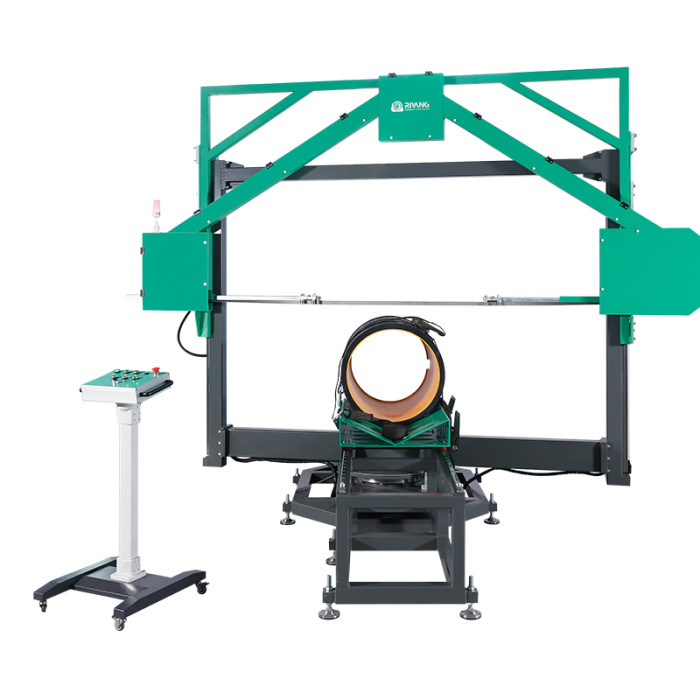

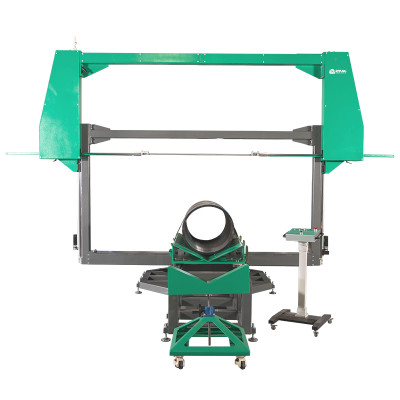

Pipe Band Saw TPS630 Introduction
The TPS630 is a hydraulic workshop band saw for cutting thermoplastic pipes (HDPE, PP, PVDF, PPR, PVC) from 200mm to 630mm, featuring a manually rotatable body with adjustable cutting angles (0°–67.5°), automatic saw movement with speed control via a mobile control panel, and secure pipe clamping using heavy-duty tie-down straps—ideal for pairing with the ATLA fitting fabrication machine.
Pipe Band Saw TPS630 Features
Pipe Band Saw TPS630 Technical Parameters
| Product model | TPS630 |
| Cutting Range O.D. | 200-630mm |
Rated Power | 3.7KW |
Line Speed | 0 - 255M/MIN |
Space Occupation | 560CM * 560CM |
MAX. Cutting Angle | 67.5º |
| Power supply | 380VAC, 3 PHASE, 50/60HZ |
Packing Material | Plywood Box |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
File Downloads
For more product related parameter files, please contact us.
