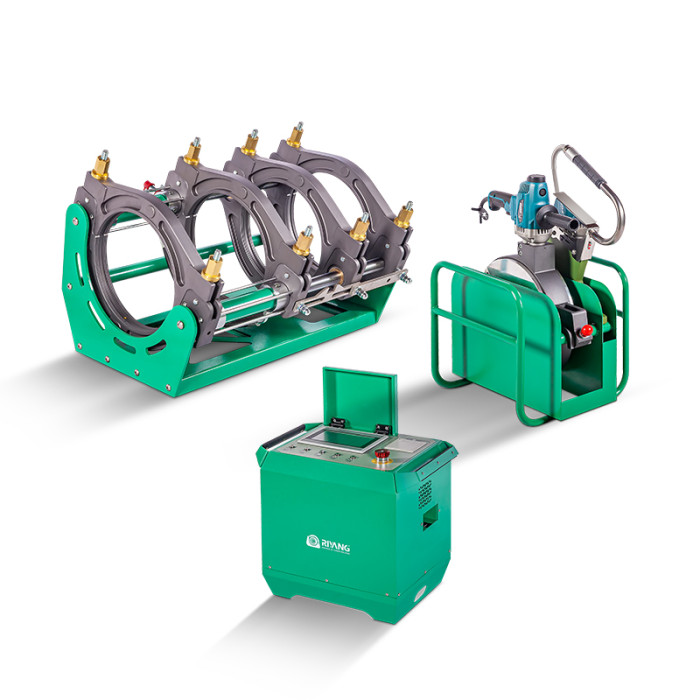

Pipe Fusion Machine V315 CNC

Pipe Fusion Machine V315 CNC
Pipe Fusion Machine V315 CNCPipe Fusion Machine V315 CNCPipe Fusion Machine V315 CNCPipe Fusion Machine V315 CNC
Welding Range in mm90-315mm
Welding Range in inch3" - 12" IPS
Power Supply220V±10%, 50/60HZ
Standard AppliedISO21307, DVS2207 etc
CertificateCE, ISO9001
Tempreture RangeMAX. 320 ºC
Working Pressure Range0 - 80 BAR
Contact Now
Detail Information
Detail Information
Pipe Fusion Machine V315 CNC Introduction
The RIYANG V315 CNC is a fully automatic hydraulic butt welding machine designed for precise welding of PE, PP, PPR, and PVDF pipes and molded fittings. Built with high-quality, long-life components, it ensures consistent performance, reduced maintenance needs, and a user-friendly interface that simplifies operation for both experienced and new users.

Pipe Fusion Machine V315 CNC Features

Enhanced Stability Frame Design

· The upgraded clamping system is built from reinforced aluminum alloy, offering greater hardness and resistance to deformation.

· Shafts are precisely machined and treated with multi-layer surface finishing to improve strength and ensure long-term structural stability.

· All machine frames—except for 160mm and 200mm models—feature a 45° open design for quicker and easier pipe loading during setup.


Precision Heating & Safe Trimming

· Stainless steel protective casing prevents corrosion and enhances durability in demanding work conditions.

· The facing tool uses a globally recognized brand of power drill, making local replacement easy and minimizing after-sales delays.

· The new-generation facing tool offers smoother, more stable torque output, with longer service life — setting a benchmark in the industry.

Intelligent & Dependable Control

· Pressure is regulated by time rather than displacement sensors, increasing reliability in challenging environments.

· One versatile control box is compatible with all models ranging from 160mm to 355mm, simplifying inventory management and making maintenance more efficient.

· Designed with user comfort in mind, the control box features an adjustable sunshade to minimize screen glare, ensuring clear visibility and ease of operation under direct sunlight.

Pipe Fusion Machine V315 CNC Technical Parameters

Product model
V315 CNC
Welding Range O.D.
90-315mm
Welding Range Inch
3" - 12" IPS
Heater Power
3.0 KW
Trimmer Power
1.5 KW
Pump Power
0.75 KW
Working Pressure Range
0 - 80 BAR
Power supply
220V±10%, 50/60HZ
Gross Weight
241 KGS
Packing Material
Plywood Box
Max. HeatingTemperature
320°C
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.

File Downloads

For more product related parameter files, please contact us.
