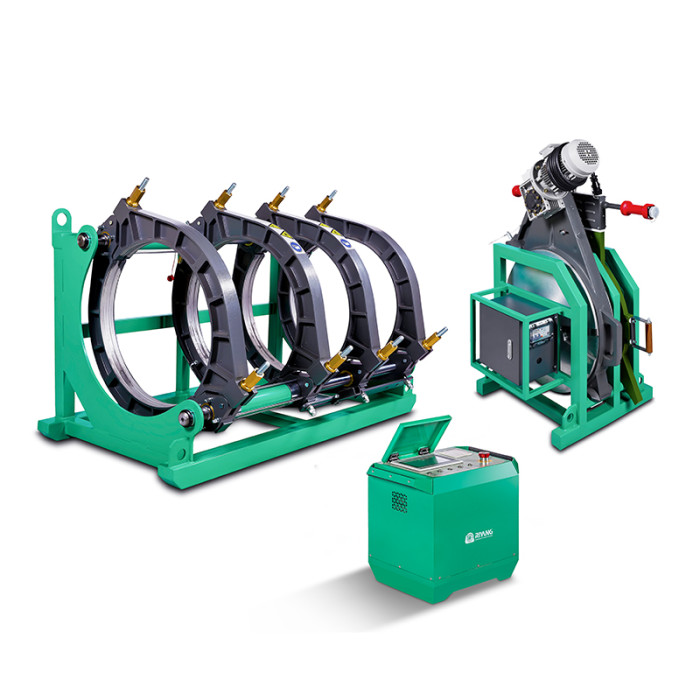

Pipe Fusion Machine V500 CNC20

Share
Categories	Automatic Butt Fusion Machine
Brand	Weissenberg
Model	V500 CNC20
Welding Range in mm	200-500mm
Welding Range in inch	8" - 20" IPS
Power Supply	380V±10%, 50/60HZ
Standard Applied	ISO21307, DVS2207 etc
Certificate	CE, ISO9001
Temperature Range	MAX. 280 ºC
Working Pressure Range	0 - 120 BAR
Manufacturer & Logo	Riyang

Contact Now

Detail Information

Pipe Fusion Machine V500 CNC20 Introduction

The RIYANG CNC2.0 automatic butt fusion machine delivers precision welding powered by Siemens PLC control. Compliant with ISO 12176-1 and the EU Machinery Directive 2006/42/EC, it accommodates major welding standards including DVS, ISO, and ASTM with fully adjustable parameters. The system logs up to 10,000 weld records and provides real-time monitoring of voltage, temperature, and pressure to safeguard weld quality. Settings can be fine-tuned per material and site conditions, and data exports via USB or printed labels give full traceability. Covered by a 2-year industry-leading warranty.

Pipe Fusion Machine V500 CNC Features

Versatile Control Box

One control box is compatible with machine models 450,500 and 630, enabling significant cost savings for users. It also allows for easy upgrades from manual to automatic configurations.

Integrated User Interface

Features a unified control panel with push-buttons and a touch screen for efficient operation and clear status monitoring.

Obtain Drag Pressure by One Click

Achieve precise drag pressure effortlessly with a single click, streamlining the welding process and improving operational efficiency.

Pipe Fusion Machine V500 CNC20 Technical Parameters

Product model	V500 CNC20
Welding Range O.D.	200-500mm
Welding Range Inch	8" - 20" IPS
Heater Power	7.3 KW
Trimmer Power	1.5 KW
Pump Power	1.5 KW
Working Pressure Range	0 - 120 BAR

Power supply	380V±10%, 50/60HZ
Gross Weight	510 KG
Packing Material	Plywood Box
Max. HeatingTemperature	280°C

* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.

File Downloads

For more product related parameter files, please contact us.
