Pipe Fusion Machine V250 CNC

Pipe Fusion Machine V250 CNC
Pipe Fusion Machine V250 CNCPipe Fusion Machine V250 CNCPipe Fusion Machine V250 CNCPipe Fusion Machine V250 CNC
Welding Range in mm(63）90-250mm
Welding Range in inch(2") 3 - 6" IPS
Power Supply220V±10%, 50/60HZ
Standard AppliedISO21307, DVS2207 etc
CertificateCE, ISO9001
Tempreture RangeMAX. 320 ºC
Working Pressure Range0 - 80 BAR
Contact Now
Detail Information
Detail Information

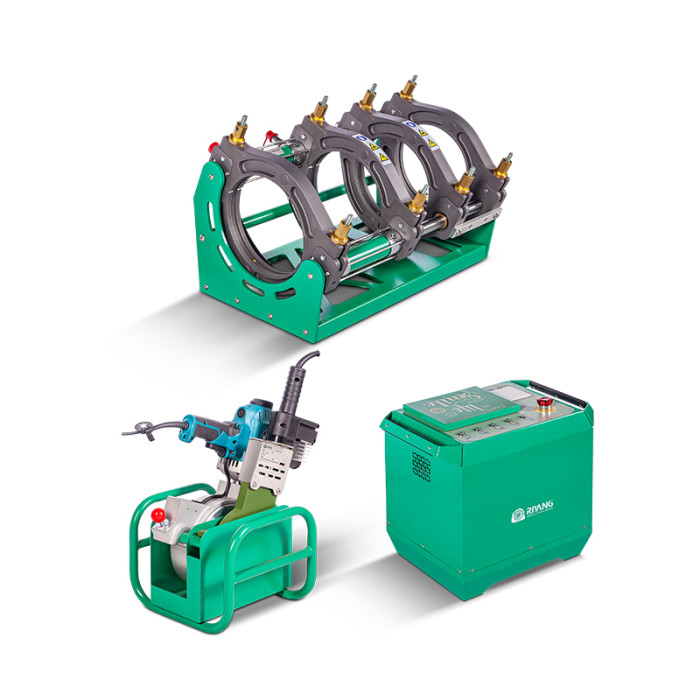

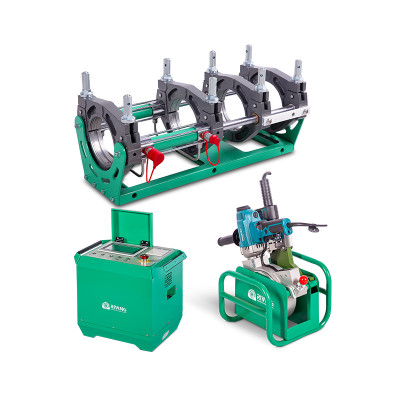

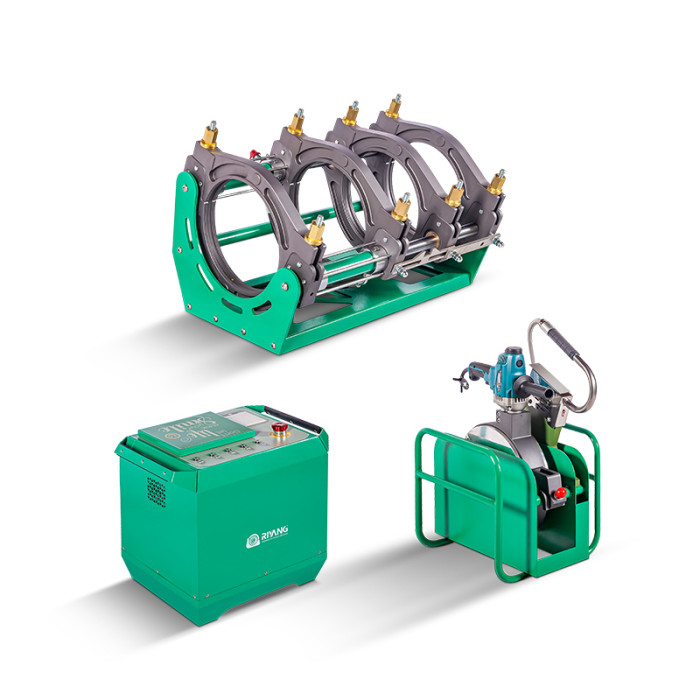

Pipe Fusion Machine V250 CNC Introduction
The RIYANG V250 CNC is an advanced automatic hydraulic butt welding machine designed for joining PE, PP, PPR, and PVDF pipes and molded fittings. Built with high-quality, long-life components, it ensures stable performance, reduced maintenance needs, and user-friendly operation. Its precision and reliability make it ideal for a wide range of thermoplastic piping applications.

Pipe Fusion Machine V250 CNC Features

Advanced Heating & Safe Trimming

· The heating plate features a high-performance Teflon coating, enhancing non-stick properties between the plate and pipe surface.

· Temperature variation across the plate is controlled within ±3°C, ensuring uniform heat distribution for consistent weld quality.

· The new-generation facing tool offers smoother, more stable torque output, with longer service life — setting a benchmark in the industry.

Durable & Leak-Resistant Frame

· Shafts are precision-machined and plated for enhanced strength and lasting stability.

· Key hydraulic components, including seals and quick couplings, are sourced from renowned international brands to ensure long-lasting performance.

· Except for 160mm and 200mm models, all frames feature a 45° open design for easier pipe loading and removal.


Intelligent & Dependable Control

· Supports remote diagnostics and firmware upgrades, allowing real-time technical support from the manufacturer and minimizing downtime.

· The control box is ergonomically designed, with an adjustable sunshade to reduce screen glare under direct sunlight.

· Pressure is controlled by time instead of displacement sensors, effectively reducing failure rates in harsh environments.

Pipe Fusion Machine V250 CNC Technical Parameters

Product model
V250 CNC
Welding Range O.D.
(63）90-250mm
Welding Range Inch
2" - 8" IPS
Heater Power
2.0 KW
Trimmer Power
1.5 KW
Pump Power
0.75 KW
Working Pressure Range
0 - 80 BAR
Power supply
220V±10%, 50/60HZ
Gross Weight
192 KGS
Packing Material
Plywood Box
Max. HeatingTemperature
320°C
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.

File Downloads

For more product related parameter files, please contact us.
