Plastic Sheet Bending Machine RZW2000

Plastic Sheet Bending Machine RZW2000

Plastic Sheet Bending Machine RZW2000
Plastic Sheet Bending Machine RZW2000Plastic Sheet Bending Machine RZW2000
CategoriesPlastic Sheet Bending Machine
BrandWeissenberg
ModelRZW2000
Maximum Bending Width2000 mm
Maximum Bending Thickness20 mm
Bending Angle:0-95°
Standard AppliedDVS2207
Weldable MaterialsPE, PP, PVDF, PVC, ABS etc
CertificateCE
Welding TypePlastic Sheet Bending
Update TimeJul 1,2025
Contact Now
Detail Information
Detail Information

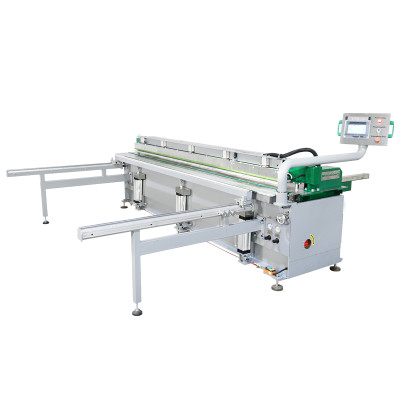

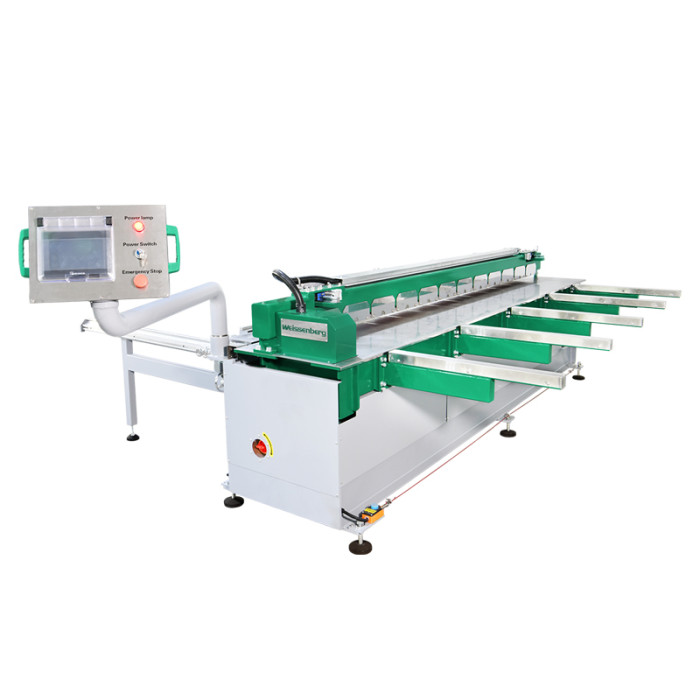

Plastic Sheet Bending Machine RZW2000 Introduction
Weissenberg RZW2000 is a precise plastic sheet bending machine for thermoplastics like PP, PE, and PVC, supporting widths up to 2000mm. It features digital temperature control and adjustable bending angles from 0° to 95°, which makes it ideal for fabricating chemical tanks, electroplating baths, and structural components with high accuracy and efficiency.

Plastic Sheet Bending Machine RZW2000 Features

Sequential Triple-Fold Bending

It enables seamless three-step bending in one workflow and is ideal for fast and precise fabrication of plating tanks and enclosed rectangular structures.

Rear Material Ejection

Allows easy removal of completed parts from the back of the machine, streamlining workflow and boosting overall productivity.

Precision Locking Clamps

Deliver firm and uniform clamping to maintain accurate sheet positioning and ensure reliable, high-strength weld seams.

SMC Pneumatic Components

Equipped with cylinders, regulators, and proportional valves from Japan’s SMC—known for precision and durability—to ensure stable air pressure and reliable control throughout the welding process.

Reinforced Frame & Worktable

Built with a heavy-duty frame and stable worktable to reduce vibration and material shift during welding—ensuring accurate sheet alignment, smooth seams, and consistent weld quality even during long or large-format operations.

Parallelogram Steel Structure

Delivers balanced pressure and synchronized movement during welding, enhancing structural stability and ensuring accurate, uniform joint alignment.

Plastic Sheet Bending Machine RZW2000 Technical Parameters

Product model
RZW2000
Maximum Working width
2,000mm
Machine Length
2,600mm
Machine width
2,800mm
Machine height
1,220mm
Bending Angle
0-95°
Bending Thickness
3-20mm
Power supply
230/400V
3/N/PE,50/60 Hz
Power consumption
2.5*2KW
Compressed Air Connection
4-8bar
Max. HeatingTemperature
260°C
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.

File Downloads

For more product related parameter files, please contact us.
