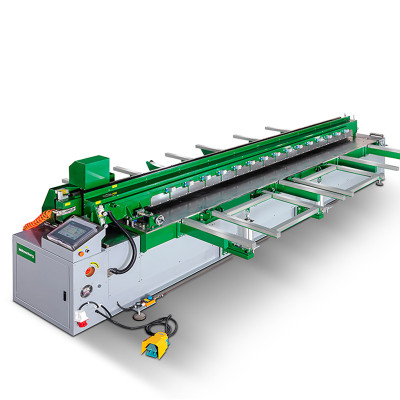

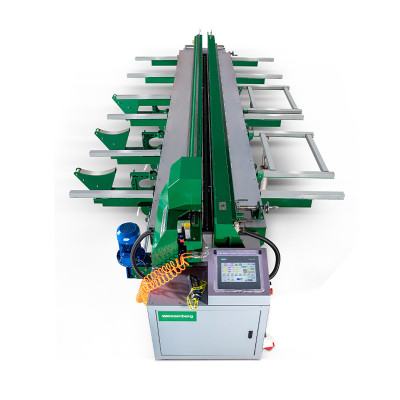

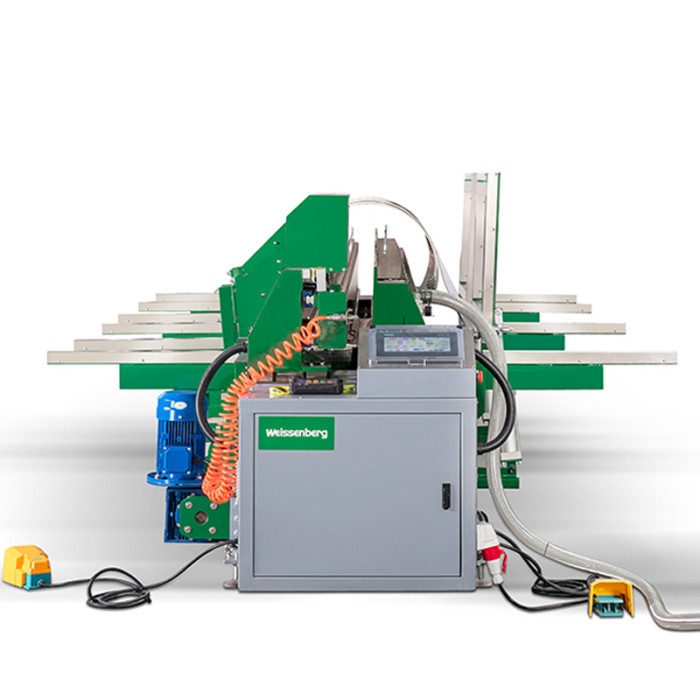

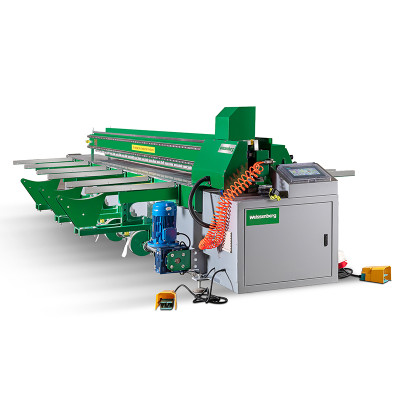

Plastic Sheet Welder RPH5000

Plastic Sheet Welder RPH5000

Plastic Sheet Welder RPH5000
Plastic Sheet Welder RPH5000Plastic Sheet Welder RPH5000Plastic Sheet Welder RPH5000Plastic Sheet Welder RPH5000Plastic Sheet Welder RPH5000
CategoriesPlastic Sheet Welder
BrandWeissenberg
ModelRPH5000
Maximum Welding Width5000 mm
Maximum Welding Thickness30 mm
Standard AppliedDVS2207
Weldable MaterialsPE, PP, PVDF, PVC, ABS etc
Welding TypePlastic Sheet Butt Welding
CertificateCE
Update TimeJul 1,2025
Contact Now
Detail Information
Detail Information

Plastic Sheet Welder RPH5000 Introduction

The Weissenberg RPH5000 is built for wide-format plastic sheet welding, with a max width of 5000mm. Suitable for PP and PE, it features an intelligent control system, 90° bending, and automatic rolling. Core parts from Mitsubishi and other top brands ensure stability and durability—ideal for chemical, environmental, and electroplating industries.

Plastic Sheet Welder RPH5000 Features

Mitsubishi PLC control system

As a trusted international brand, Mitsubishi PLC provides precise, reliable control that ensures stable performance even in demanding industrial environments.

Precise Heating Control

Maintains heating plate temperature within ±5°C for consistent weld quality, ensuring reliability even in large-scale or variable ambient environments.

Synchronized Steel Structure

Features a parallelogram design to ensure uniform pressure and synchronized motion, delivering strong stability and consistent joint alignment during welding.

High-Density Locking Clamps

Industrial-grade clamps deliver secure, uniform clamping force to ensure precise sheet alignment and durable, consistent welds.

Stable Frame & Worktable Design

Constructed with a reinforced frame and heavy-duty worktable to minimize vibration and material movement, ensuring precise and smooth weld seams.

Emergency Stop Line

A safety feature designed to immediately halt machine operation in case of emergency, ensuring operator safety and preventing equipment damage.

Plastic Sheet Welder RPH3000 Technical Parameters

Product model
RPH5000
Maximum Working width
5,000mm
Machine Length
6,750mm
Machine width
2,300mm
Machine height
1,200mm
 PE (0.15 N/mm²)
3-30
 PP (0.10 N/mm²)
3-30
 PVDF (0.10 N/mm²)
3-30
Power supply
230/400V
3/N/PE,50/60 Hz
Power consumption
8.5KW
Compressed Air Connection
4-8bar
Max. HeatingTemperature
260°C
Optional Auxiliary Tools
90° degree angle device
Rolling auxiliary device
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.

File Downloads

For more product related parameter files, please contact us.
