Where Plastic Sheets Meet Unbreakable Joints

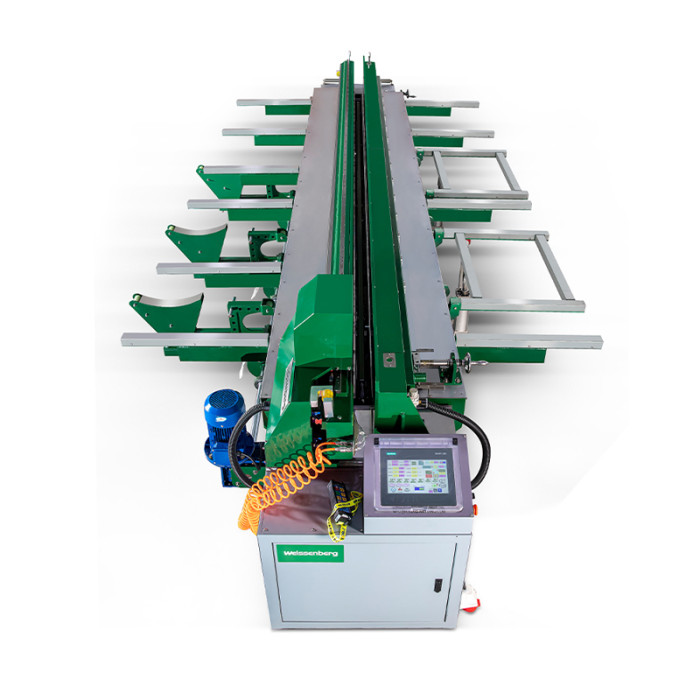

Plastic Sheet Welder RPH4000
| Categories | Plastic Sheet Welder |
|---|---|
| Brand | Weissenberg |
| Model | RPH4000 |
| Maximum Welding Width | 4000 mm |
| Maximum Welding Thickness | 30 mm |
| Standard Applied | DVS2207 |
| Weldable Materials | PE, PP, PVDF, PVC, ABS etc |
| Welding Type | Plastic Sheet Butt Welding |
| Certificate | CE |
| Update Time | Jul 1,2025 |
Detail Information
Detail Information
Plastic Sheet Welder RPH4000 Introduction
The Weissenberg RPH4000 is a heavy-duty butt welding machine for thermoplastic sheets 3 to 30 mm thick, with a maximum welding width of 4000 mm. Built for industrial sectors including chemical processing, ventilation systems, and wastewater treatment, it delivers consistent, high-quality welds on large-scale sheets.
Plastic Sheet Welder RPH4000 Features
Plastic Sheet Welder RPH4000 Technical Parameters
| Product model | RPH4000 |
| Maximum Working width | 4,000mm |
Machine Length | 5,750mm |
Machine width | 2,300mm |
Machine height | 1,200mm |
PE (0.15 N/mm²) | 3-30 |
PP (0.10 N/mm²) | 3-30 |
| PVDF (0.10 N/mm²) | 3-30 |
| Power supply | 230/400V 3/N/PE,50/60 Hz |
| Power consumption | 7KW |
Compressed Air Connection | 4-8bar |
Max. HeatingTemperature | 260°C |
| Optional Auxiliary Tools | 90° degree angle device Rolling auxiliary device |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
File Downloads
For more product related parameter files, please contact us.
