HDPE Boat Construction (HDPE Boats): From Plate & Pipe to Seamless Hulls
Two-line summary:
HDPE boats for harsh near-shore duty use black, UV-stabilized high-density polyethylene plate/pipe as the base material. Primary load-bearing seams are made by hot-plate butt fusion and fillets/outfitting by extrusion welding—combined with efficient cutting + CNC routing + forming + QA for impact-tolerant, corrosion-free, low-maintenance HDPE boats and best-practice HDPE boat welding.
1. Materials & Hull Forms
Why choose black HDPE:
• Black HDPE (often pipe-grade/high-molecular-weight) offers strong impact resistance, abrasion/sliding performance, and seawater chemical inertness.
• UV stabilization via carbon black gives reliable outdoor durability for long marine service.
• Intake docs to keep: thickness tolerance, grade/batch traceability, UV-stabilization proof.
Common hull forms:

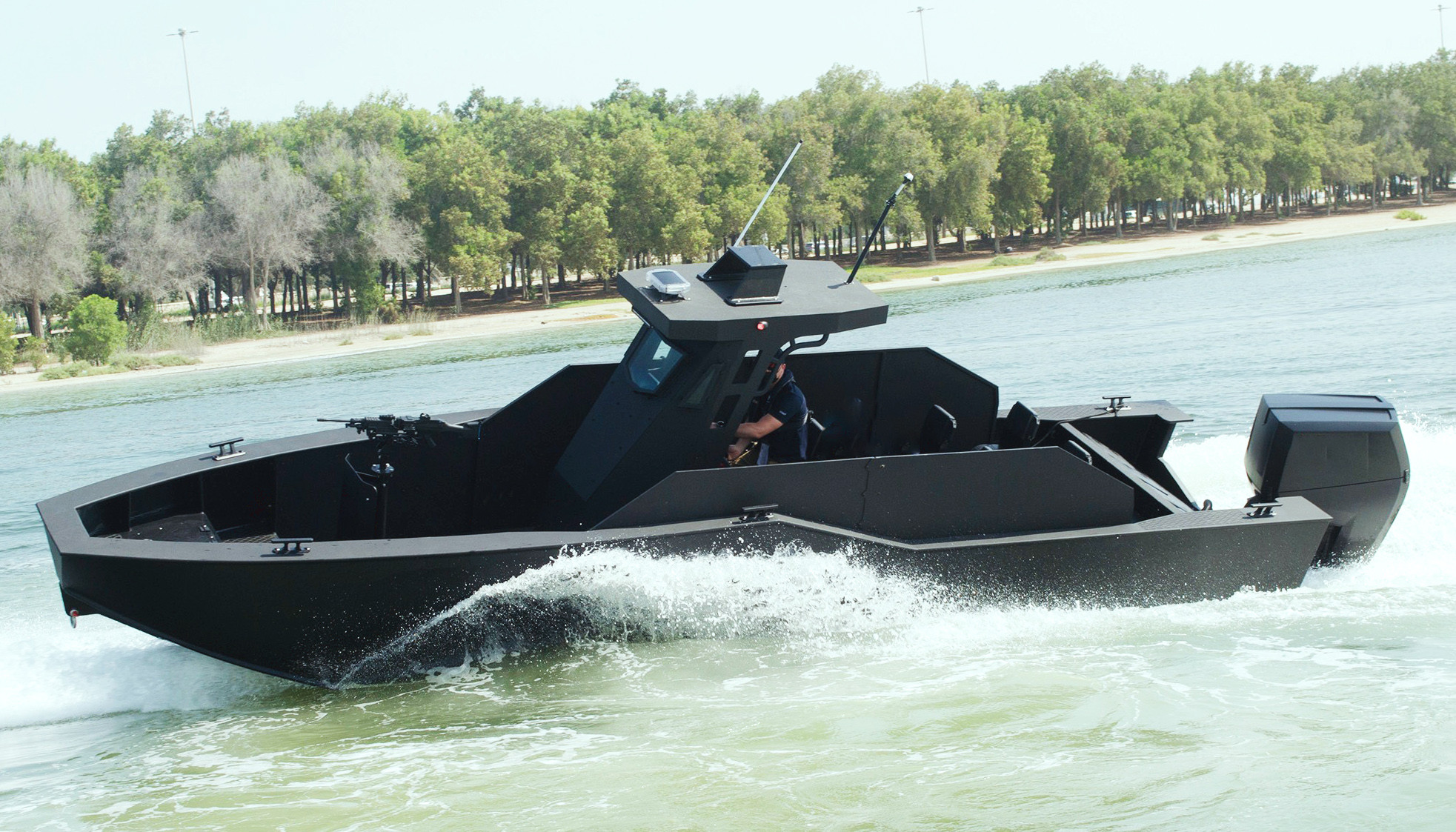

• RBB (Rigid Buoyant Boat): welded HDPE plate hull with side sponsons—scuff-resistant, big usable deck; suited to law enforcement/rescue/utility.
• Landing craft: bow-ramp boats for beaching/rocky-shore/shallow-water loading; a high-frequency option in construction and aquaculture.
• Pipe-float/pontoon platforms: cat platforms, docks, barges using HDPE pipe pontoons—high buoyancy, impact-tolerant, low maintenance.
2. Joining Methods (no adhesives—thermal fusion first)

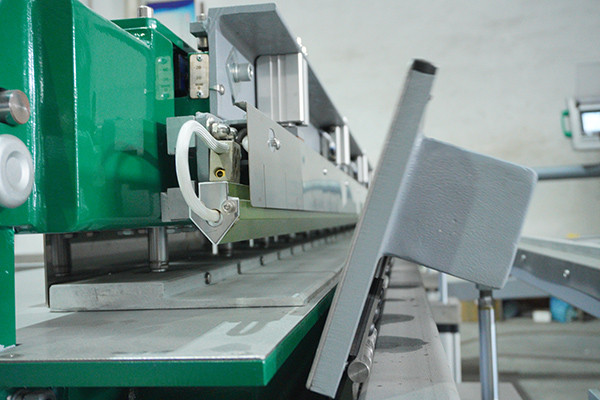

HDPE sheet welding — for primary/long plate seams
• Alignment & clamping: face, square, align; control gap and coaxiality.
• Heating: apply set temperature/time/pressure to form uniform melt layers.
• Changeover & closing: remove heater, close under specified pressure, and hold.
• Controlled cooling: cool under clamp to the target temperature to avoid residual stress.
• Recording/traceability: per WPS (Welding Procedure Specification), log temperature/pressure/time/cooling curve, and retain coupons.

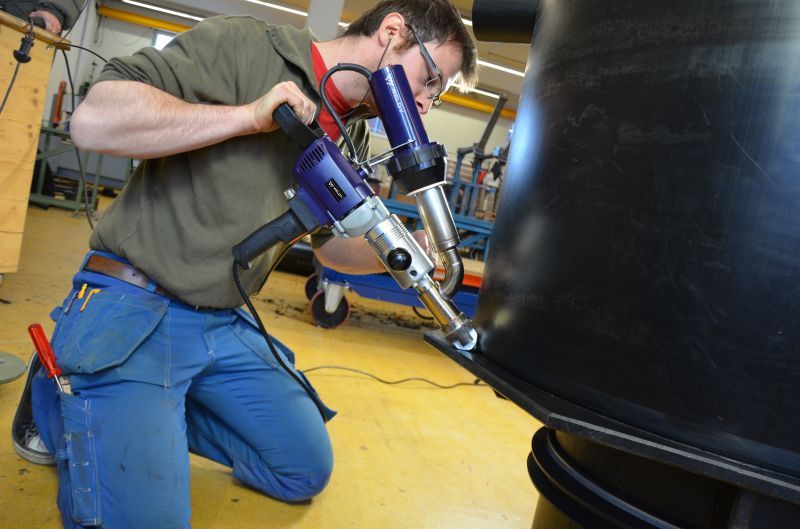

Extrusion welding — for fillets/outfitting/repairs
• Use a compatible PE weld rod and an extrusion welder in V/U grooves.
• Control melt temperature, preheat, travel speed, and feed to avoid porosity and lack of fusion.

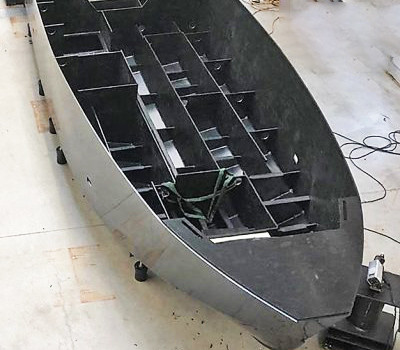

• Typical uses: stringers/bulkheads, rails & guards, deck modules, equipment bases.
• Field-friendly: tack/shape with hot air first, then complete the extrusion pass.
All butt-fusion and extrusion-welding operations are executed in accordance with DVS 2207-1 for PE-HD plates/pipes and governed by our WPS/PQR system and operator qualification. Key parameters (temperature/pressure/time/cooling) are logged per weld and tied to coupon IDs for full traceability.
3. CNC Routing & Cutting (fit-up determines weld quality)
Process split (cut first, then route/groove):
• Cutting machines: full-sheet high-efficiency cutting/nesting/outer profiles — [CNC FlexCut-3000 Cutting Machine] / [EasyCut-3000 Cutting Machine].
• CNC router (engraving): milling/grooving/chamfering/lands/holes for assembly features — [CNC Router RYF1530] / [CNC Router RYF2040].
Programming & machining notes for HDPE:
• Run high feed / moderate RPM to keep chip load up and avoid melting edges (“make chips, not dust”).
• Prefer 1–2-flute O-flute cutters; maximize chip evacuation and dust extraction.
• Workholding & flatness: vacuum table or mechanical fixtures to keep sheets flat, minimizing assembly warp.
• Bevels & lands: program per WPS; deburr without creating notch starters.
Linear line-bending & forming:
For coamings, trays, and guards, controlled line bending after cutting/routing can reduce part count. Keep bend zones away from future welds to prevent locked-in stress affecting weld quality.
Quality Assurance (bevels, weld integrity, thickness control & UV)
• Incoming control: verify thickness tolerance, grade, and UV stabilization (carbon-black content/dispersion); label and trace batches.
• Process control: per WPS/PQR and shop travelers, record temperature/pressure/hold/cooling; ensure operator qualification.
• Inspection & testing:
• Visual: reinforcement profile, bead shape, HAZ, flash, shrink marks.
• Destructive: T-peel/bend coupons for butt/fillet joints where applicable.
• NDE when required: select per contract/standard (e.g., ultrasonic methods adapted from PE pipeline welds).
5. Case Examples
Pipe-float/pontoon hulls (HDPE workboats & platforms):
Floating docks, cat platforms, and utility barges with HDPE pipe pontoons — high buoyancy, impact tolerance, seawater inertness; low maintenance in shallow/rocky zones.
RBBs & ready-to-deliver landing-craft workboats:
HDPE RBBs for patrol/rescue/harbor operations/aquaculture; widely adopted for scuff resistance and low maintenance. Standardized HDPE landing craft models enable rapid delivery for tight project windows.
6. Weissenberg Process Flow & Bill of Tools (ready to implement)
Material intake & nesting
Verify plate/pipe certificates → CAD/CAM nesting; mark part orientation and bevels.
Equipment: [CNC FlexCut-3000 Cutting Machine] / [EasyCut-3000 Cutting Machine] for high-efficiency full-sheet cutting/nesting.
Precision machining & edge prep
On [CNC Router RYF1530] / [CNC Router RYF2040], complete grooves/chamfers/lands/holes.
Run high feed / moderate RPM with O-flute tooling; ensure chip evacuation. Program bevels/lands; deburr without notch formation.
Forming (as required)
Use [WeiFlex Bending Machine] for controlled line bends (coamings/trays/guards). Cool to dimensional stability before assembly welding.
Primary joining
Use [Weibond Butt Welder] for hot-plate butt fusion on keel/centerline/long seams. Log temperature/pressure/time/cooling per WPS; retain coupons.
Secondary joining & outfitting
Use [Weldy Extrusion Welder] for fillets, stiffeners, bases, and guards; when needed, use [Weldy Hot-Air Tools (HT1600/HT3400)] for tacking/shaping.
Ensure rod compatibility, preheat/extrusion temperatures, and travel speed match to avoid porosity and lack of fusion.
QA & documentation
Visual inspection → T-peel/bend destructive tests → dimensional re-check.
Archive WPS/PQR, weld-parameter logs, and coupon reports; apply NDE selectively per contract.
FAQ
Q1: Do HDPE hulls require antifouling?
A: Many operators leverage HDPE’s easy-to-clean, seawater-inert surface to reduce or omit traditional antifouling. Whether you need coatings depends on biofouling pressure, lay-up time, and maintenance strategy.
Q2: How is UV resistance achieved with black HDPE?
A: By adding carbon black (commonly ~2–3%) for UV stabilization, combined with suitable molecular weight and dispersion control—one reason black HDPE is preferred for long-life workboats.
Q3: What's the core advantage vs aluminum?
A: No corrosion/galvanic issues and excellent impact/abrasion behavior—ideal for beaching/rocky/shallow operations—with low day-to-day maintenance (very large/ultra-stiff hulls still require holistic evaluation).
