Where Plastic Sheets Meet Unbreakable Joints
Plastic Sheet Butt Welder WeiBond 7000
Detail Information
Detail Information

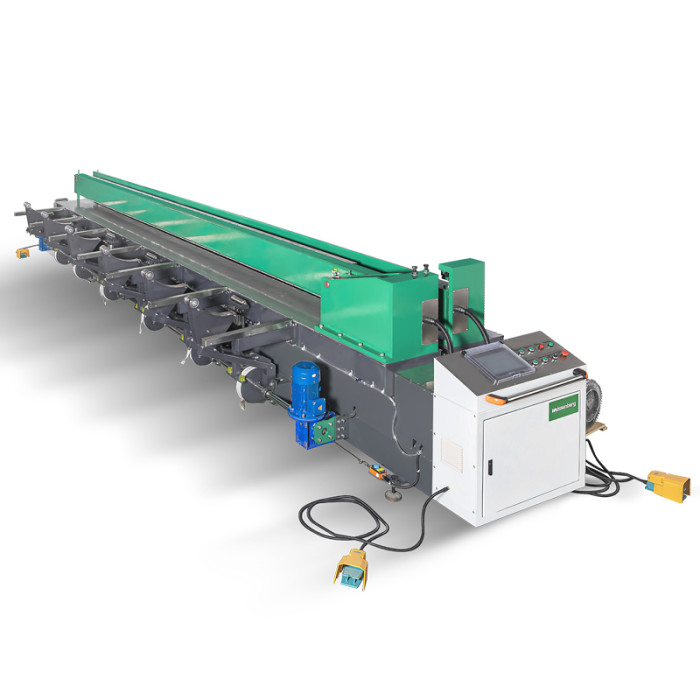

Plastic Sheet Butt Welder WeiBond 7000 Introduction
The Weissenberg WeiBond 7000 is a 7m plastic sheet butt welder for PP, PE, HDPE, PVC, and other thermoplastics. With precise temperature and pressure control, a sturdy frame, and high-density clamps, it delivers stable, consistent welds. Key components come from top international brands, making it ideal for fire protection, HDPE boats, and storage tanks.
Plastic Sheet Butt Welder WeiBond 7000 Features
Plastic Sheet Butt Welder WeiBond 7000 Technical Parameters
| Product model | WeiBond 7000 |
| Maximum Working width | 7,000mm |
Machine Length | 9,280mm |
Machine width | 2,850mm |
Machine height | 1,250mm |
PE (0.15 N/mm²) | 3-40 |
PP (0.10 N/mm²) | 3-40 |
| PVDF (0.10 N/mm²) | 3-40 |
| Power supply | 230/400V 3/N/PE,50/60 Hz |
| Power consumption | 14KW |
Compressed Air Connection | 4-8bar |
Max. HeatingTemperature | 260°C |
| Optional Auxiliary Tools | 90° degree angle device Rolling auxiliary device |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
File Downloads
For more product related parameter files, please contact us.
