Socket Fusion Machine DRRQ-63



Categories | Socket Fusion Machines |
---|---|
Brand | Weissenberg |
Model | DRRQ-63 |
Model | DRRQ-63 |
Welding Range(mm) | 20-63 |
Certificate | CE, ISO9001 |
Working Tempreture | 260 ℃ ±30% |
Weldable Materials | PP-R, PE, PP, PB, PVDF |
Update Time | Jul 1,2025 |
Detail Information
Detail Information
Socket Fusion Machine DRRQ-63 Introduction

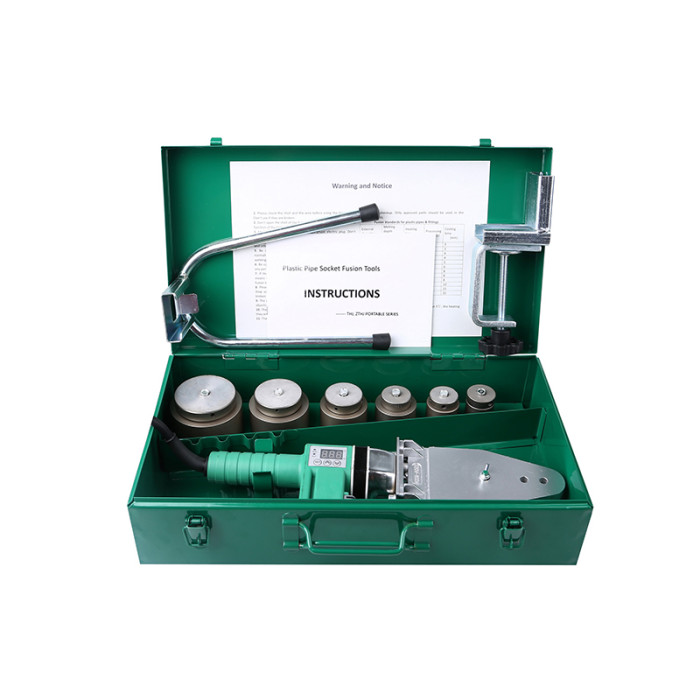

The Weissenberg DRRQ-63 is a portable socket fusion tool designed for welding plastic pipes up to 63mm. It comes with a Teflon-coated heating plate, a stable support frame, and an electronic thermostat for consistent temperature control. Lightweight and easy to handle, it’s perfect for on-site jobs. The heat-protected grip and coated welding sockets deliver safe, strong, and long-lasting joints.
Socket Fusion Machine DRRQ-63 Technical Parameters
Product model | DRRQ-63 |
Working Tempreture | 260℃±30% |
Net Weight | 1.8KG |
Carton Size(mm) | 460x265x265 |
Weight/Carton | 16.5KG |
Power | 800/870W |
Environment Temperature | -5℃~ 45℃ |
Rated Voltage | A.C 220/230V, 50/60HZ |
PCS/Carton | 2 |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
