Energy HT1600D Overlap Welding Kit
| Categories | Weldy Hot Air Blower |
|---|---|
| Brand | Weissenberg |
| Model | Energy HT1600D Overlap Welding Kit |
| Article | 160.174 |
| Voltage & Frequency | 120/230 V, 50/60 Hz |
| Power | 1600 W |
| Temperature | 40 - 620 °C |
| Nozzle connection ø | 31.5 mm / 1.25 in |
| Weight | 1.2 kg |
| Approvals | CE |
| Update Time | Jul 1,2025 |
Detail Information
Detail Information
Energy HT1600D Overlap Welding Kit Introduction
This kit features the HT1600D digital heat gun combined with overlap welding nozzles engineered for precise and strong weld seams. It improves production efficiency and weld quality, making it an excellent choice for industrial applications requiring repeatability and reliability in overlap welding.
Energy HT1600D Overlap Welding Kit Features

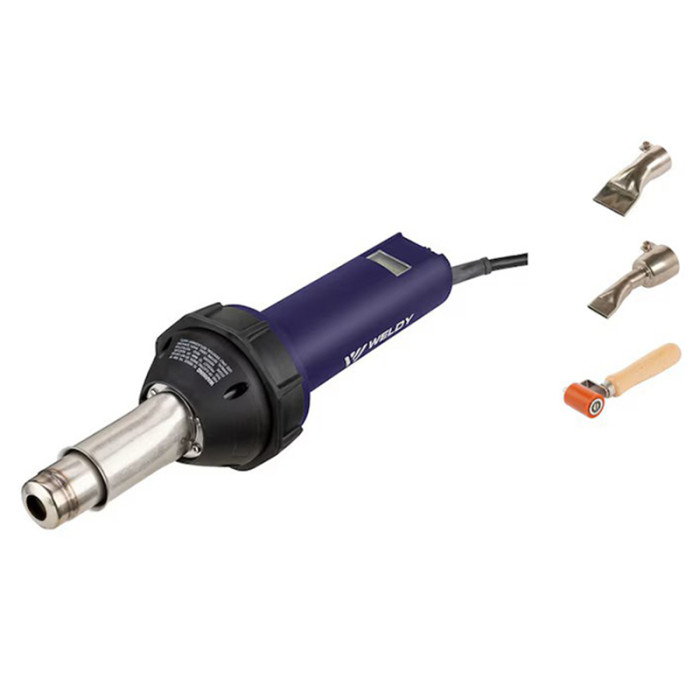

The energy HT1600 D overlap welding kit from Weldy, a Leister brand, is affordable for craftsmen and DIYers who want to overlap weld thermoplastics such as PE, PP and PVC (vinyl). The kit consists of the following five items: Weldy energy HT1600 D heat gun, 40 mm wide slot nozzle (article no. 124.777), 20 mm wide slot nozzle (article no. 124.772), 40 mm pressure roller made of silicone (article no. 130.611) and spare carbon brushes for the blower motor (article no. 125.810).
The Weldy HT 1600 heat gun has an LCD display that provides continuous digital temperature control from 40°C (104°F) to 620°C (1,148°F). The main applications for the energy HT1600 D overlap welding kit are overlap welding roofing membranes, shrinking foils, as well as welding floor coverings. Additionally, it’s used to dry and activate adhesives and fillers, shrink car wraps, as well as the process sensitive materials like leather and imitation leather (e.g. car interior).
Energy HT1600D Overlap Welding Kit Technical Parameters
| Article | 160.174 |
| Voltage & Frequency | 120/230 V, 50/60 Hz |
Power | 1600 W |
Temperature | 40 - 620 °C |
Temperature setting stepless | Yes |
Airflow (20°C) | 240 l/min |
Stepless air volume adjustment | No |
| Static pressure | 2600 Pa |
| Eco-Mode | No |
Weight | 1.2 kg |
Plug | EU, 2 poles, 16A |
Approvals | CE |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
