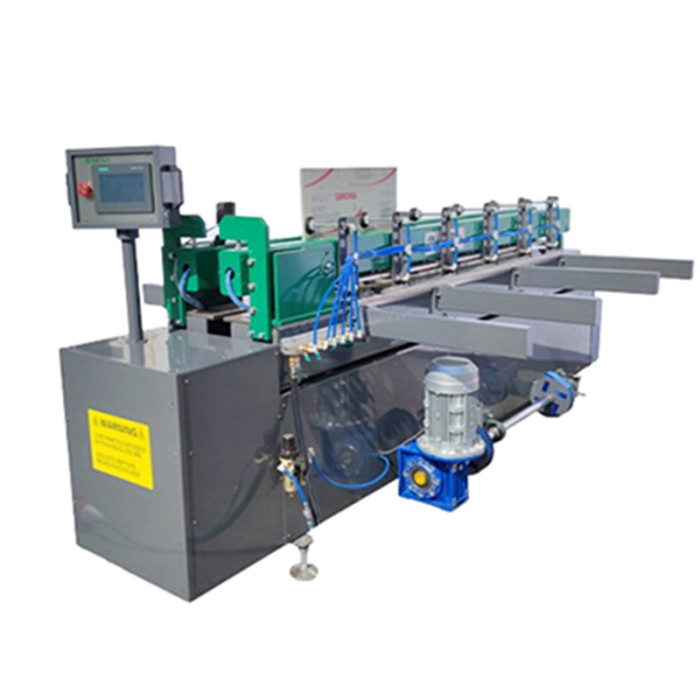

Plastic Sheet Welder WeiBond 1500

Categories	Plastic Sheet Welder
Brand	Weissenberg
Model	WeiBond 1500
Maximum Welding Width	1500 mm
Maximum Welding Thickness	15 mm
Standard Applied	DVS2207
Weldable Materials	PE, PP, PVDF, PVC, ABS etc
Welding Type	Plastic Sheet Butt Welding
Certificate	CE
Update Time	Jul 3,2025

Contact Now

Detail Information

Plastic Sheet Welder WeiBond 1500 Introduction

The Weissenberg WeiBond 1500 is a high-performance butt welding solution engineered for precise joining of thermoplastic sheets ranging from 3–15 mm in thickness. It supports the production of tanks, pipelines, ventilation systems, and plastic apparatus. Its robust build and consistent heating system ensure reliable welds across industrial applications, including chemical storage, water treatment, and utility infrastructure.

Plastic Sheet Welder WeiBond 1500 Features

Precise Heating Control

Maintains heating plate temperature within ±5°C to ensure consistent weld quality, even across large surface areas or varying ambient conditions.

Synchronized Steel Structure

Ensures uniform pressure and motion during welding, providing strong stability and consistent joint alignment throughout the process.

High-density locking clamps

Provide secure and even clamping force to ensure precise sheet alignment and strong, consistent welds.

Compliant with DVS 2207 standard

Ensures all welding processes meet strict temperature and quality requirements for reliable, high-strength joints.

Mitsubishi PLC control system

Offers reliable and precise automation for smooth operation and consistent welding performance.

Welding data recording

Captures and stores welding parameters for quality control and process traceability.

Plastic Sheet Welder WeiBond 1500 Technical Parameters

Product model	WeiBond 1500
Maximum Working width	1550mm
Machine Length	2150mm
Machine width	600mm
Machine height	1200mm
PE (0.15 N/mm²)	3-15
PP (0.10 N/mm²)	3-15
PVDF (0.10 N/mm²)	3-15

Power supply	230V， 50/60 Hz
Power consumption	3KW
Compressed Air Connection	4-8bar
Max. HeatingTemperature	260°C
Optional Auxiliary Tools	90° degree angle device Rolling auxiliary device

* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
